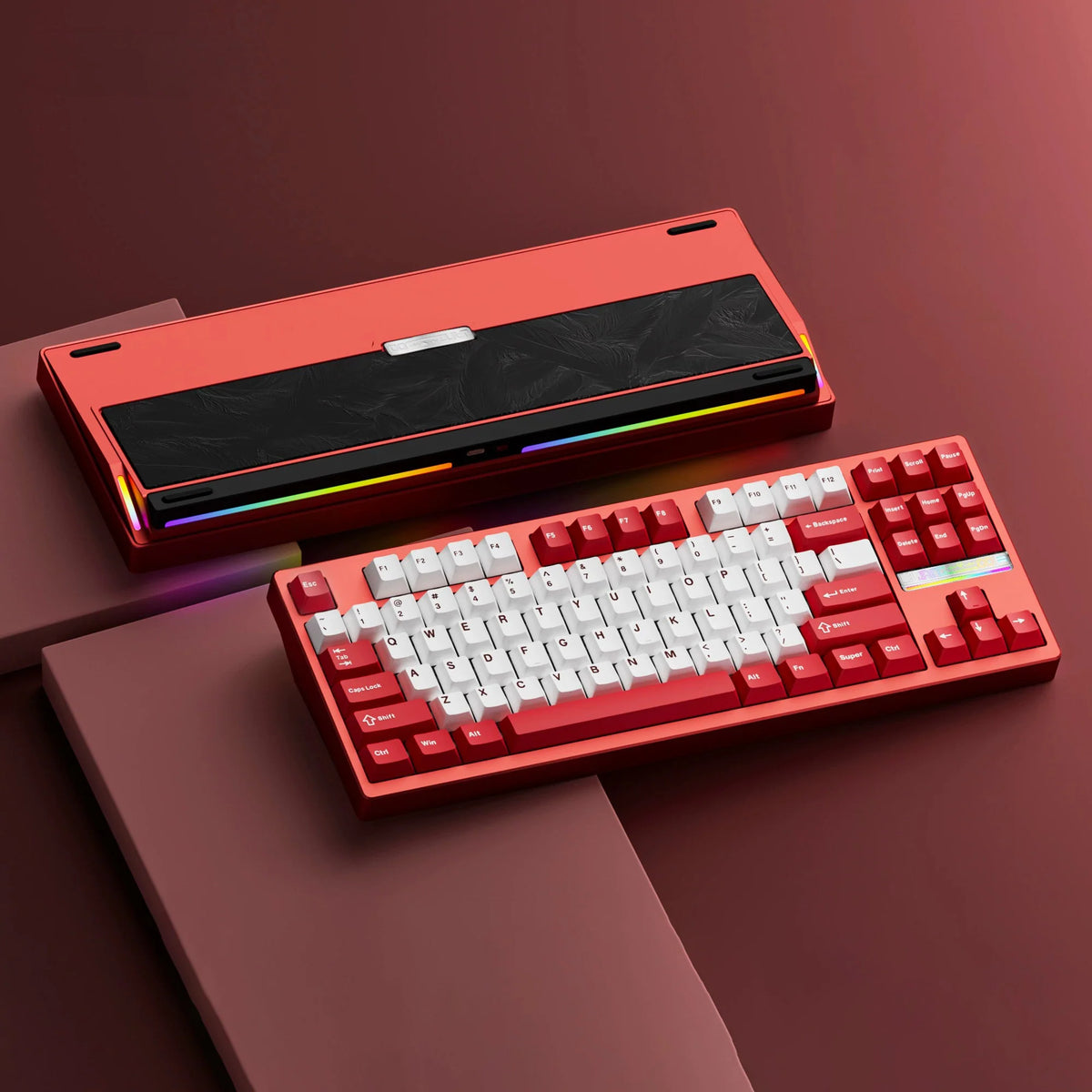

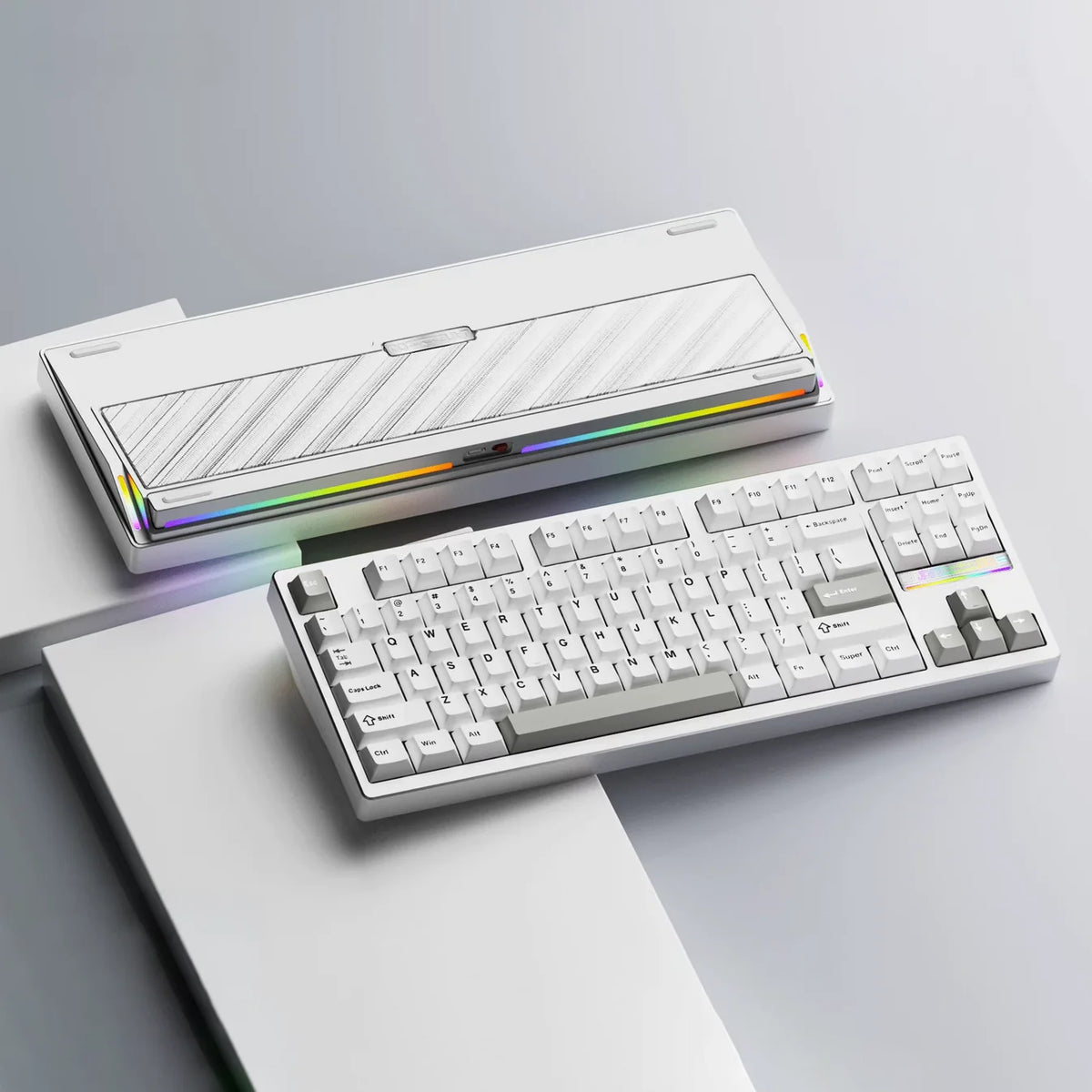

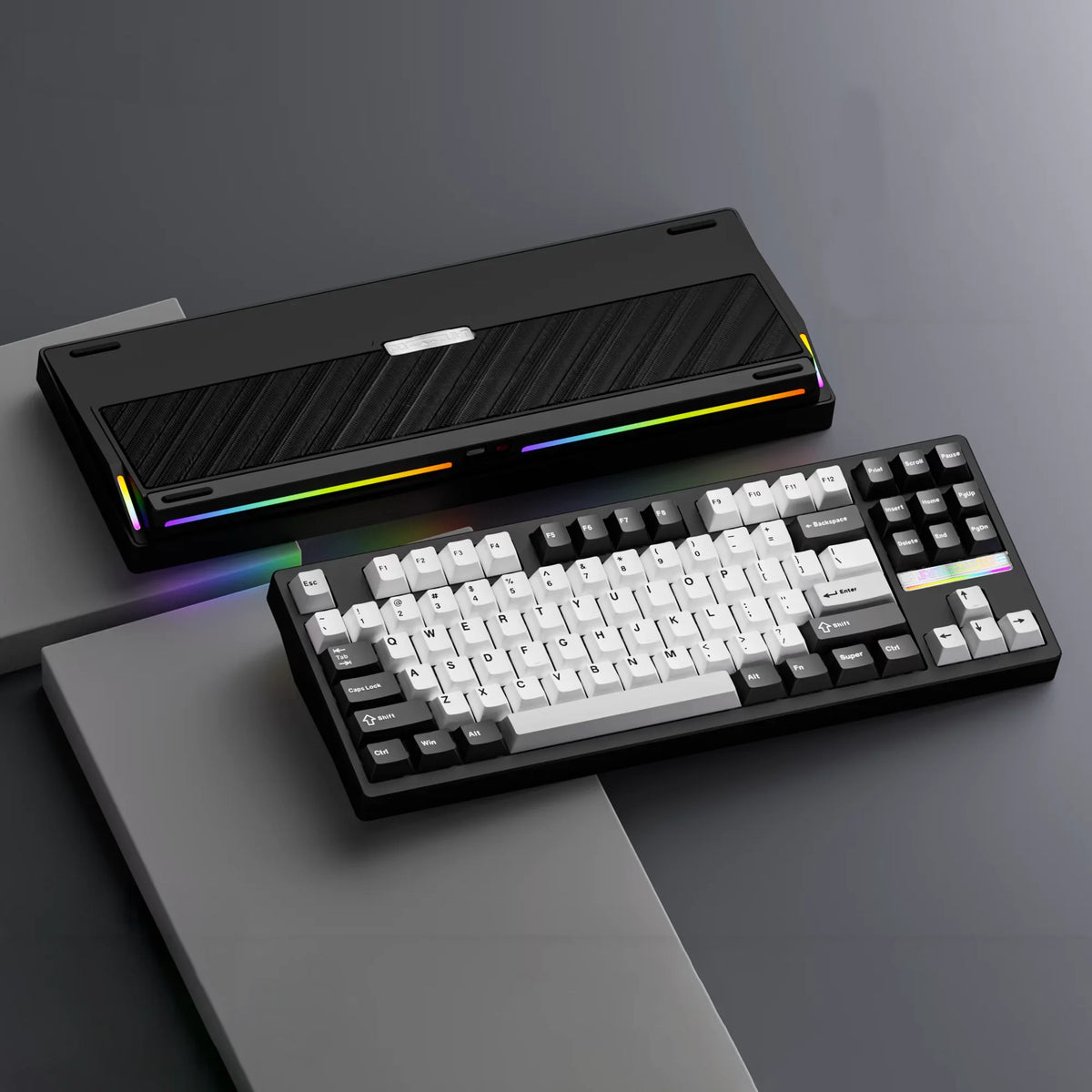

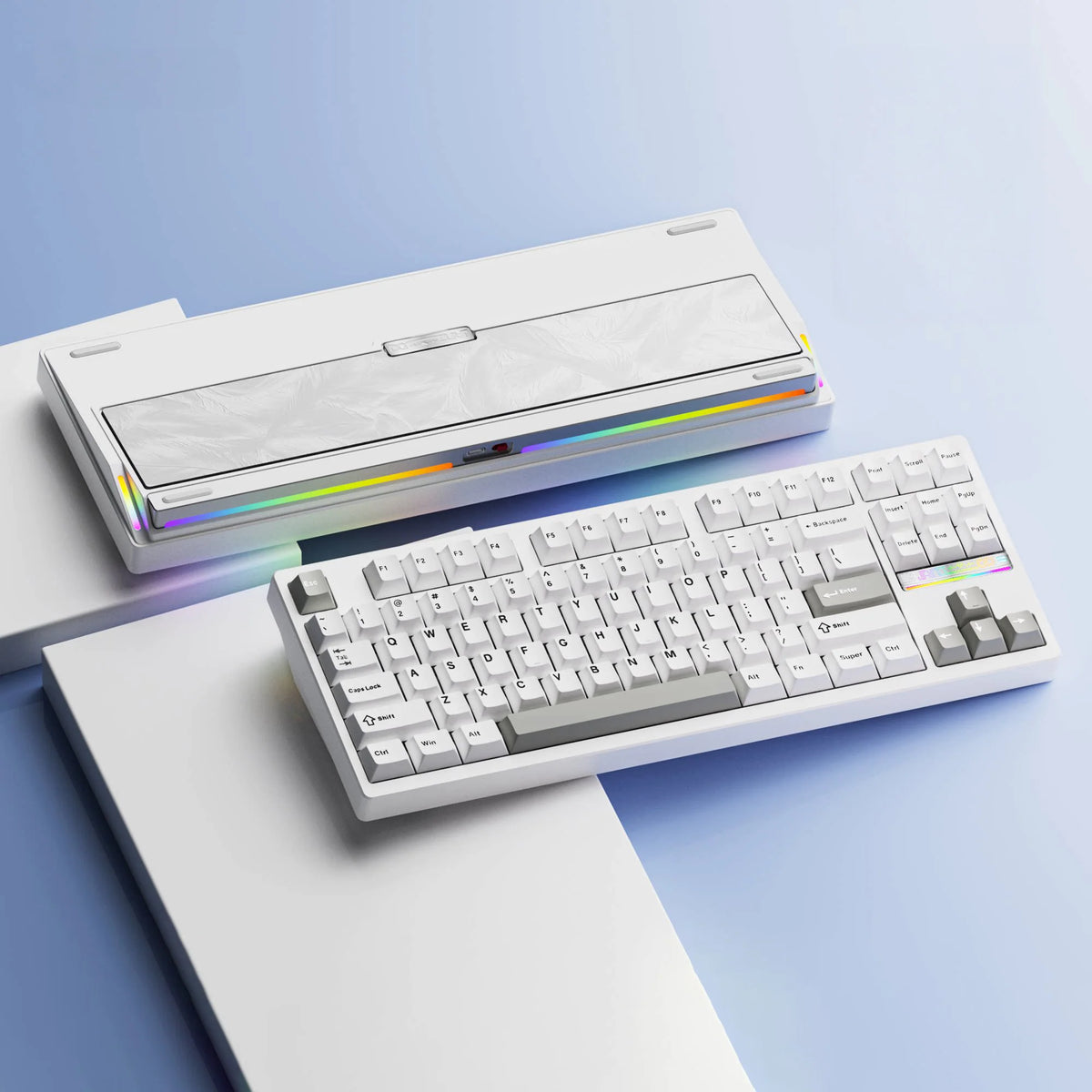

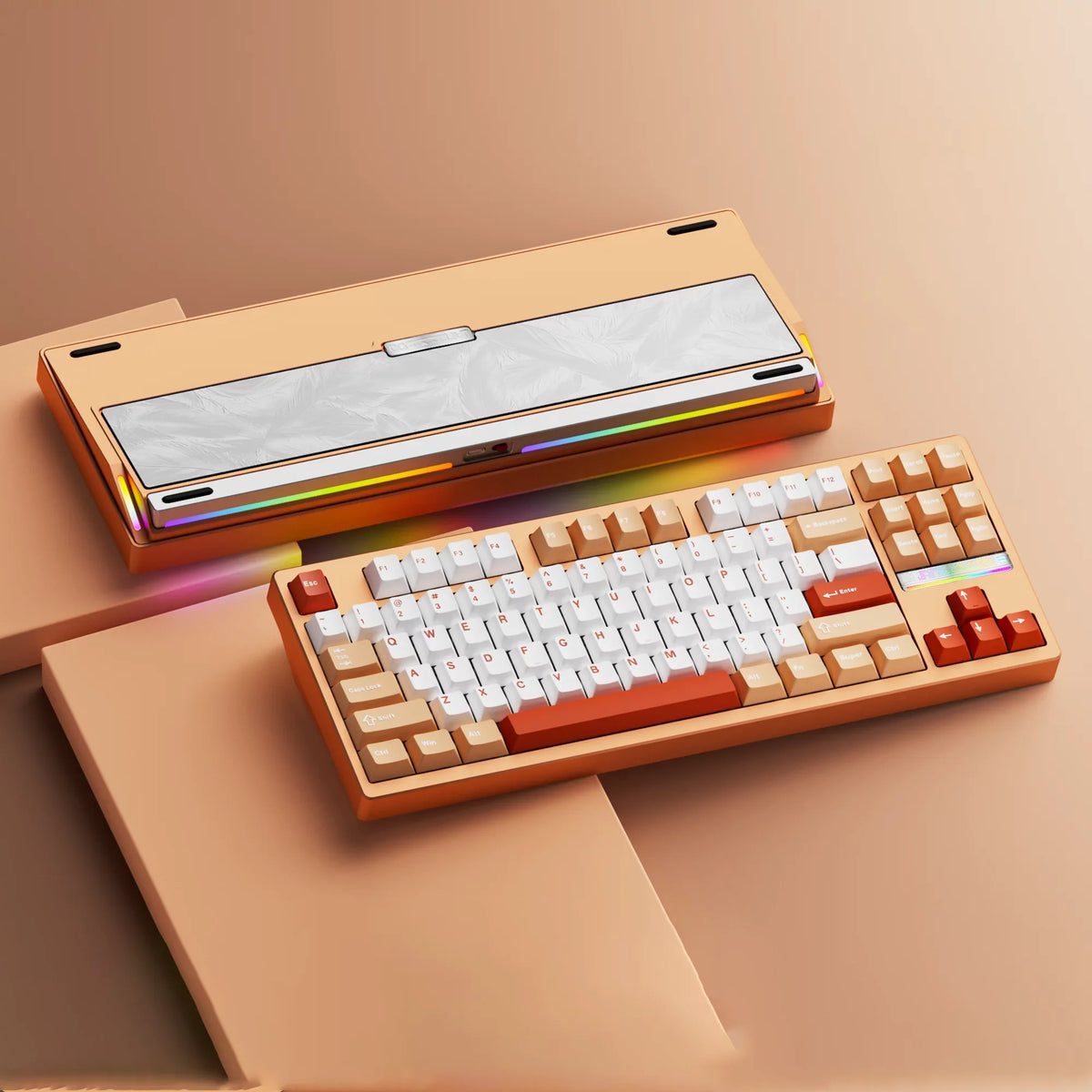

Weikav NUT87

TKL · Reactive Lighting · Dual 8K

The NUT87 brings the NUT series’ signature design and features to a TKL layout, combining a 220-grit CNC-finished 6063 aluminum case, reactive lighting, and dual 8K connectivity.

Key Features

220-Grit CNC Aluminum Case
Machined from 6063 aluminum and finished to the same 220-grit standard as the rest of the NUT series, giving the case a soft, matte texture that resists fingerprints.

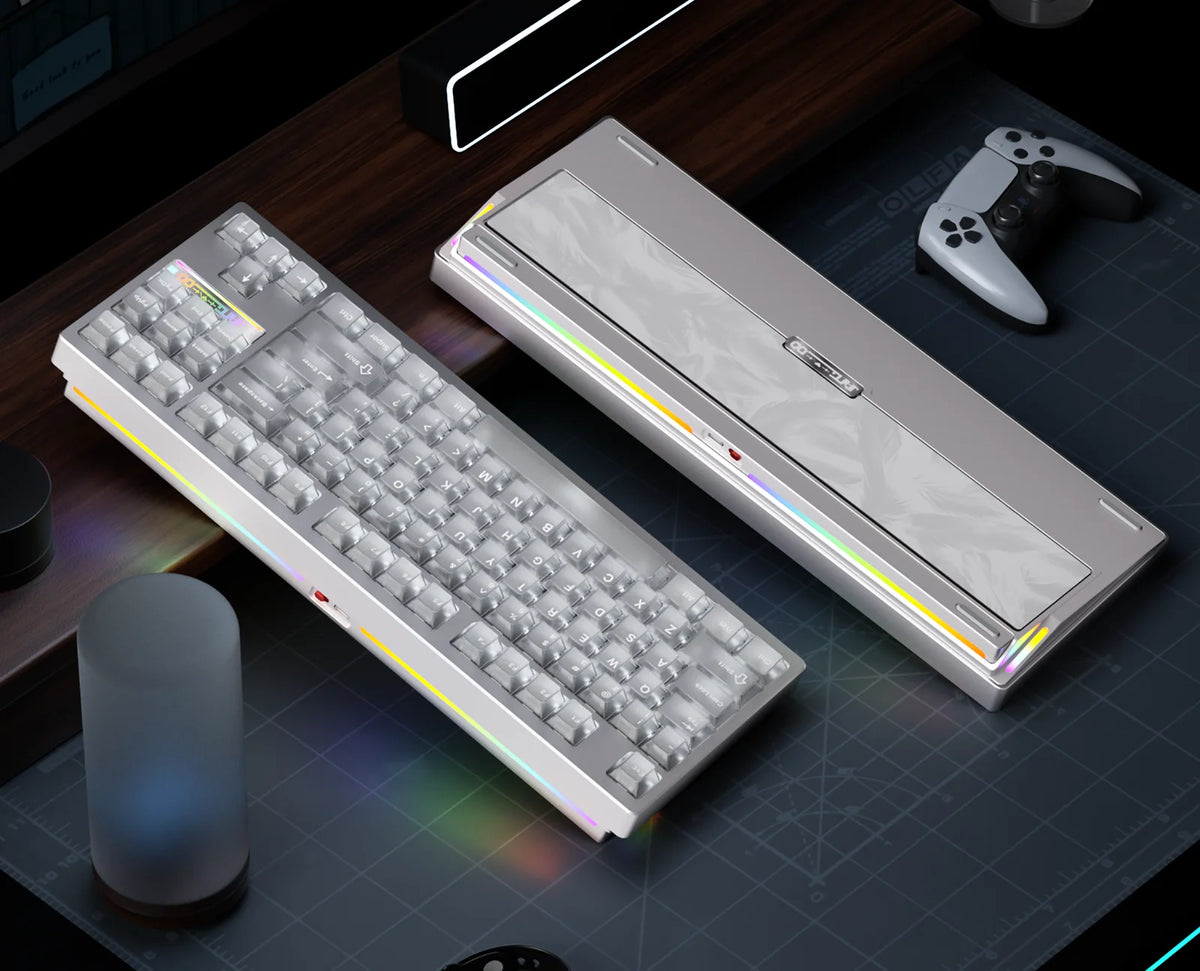

Top-Edge Reactive Lighting
Music- and keystroke-reactive lighting runs along the top edge of the case, facing your monitor for a different take on the NUT series' lighting design.

Editing Cluster Underglow
A second lightbar sits beneath the editing cluster, adding a subtle lighting accent unique to the NUT87's TKL layout.

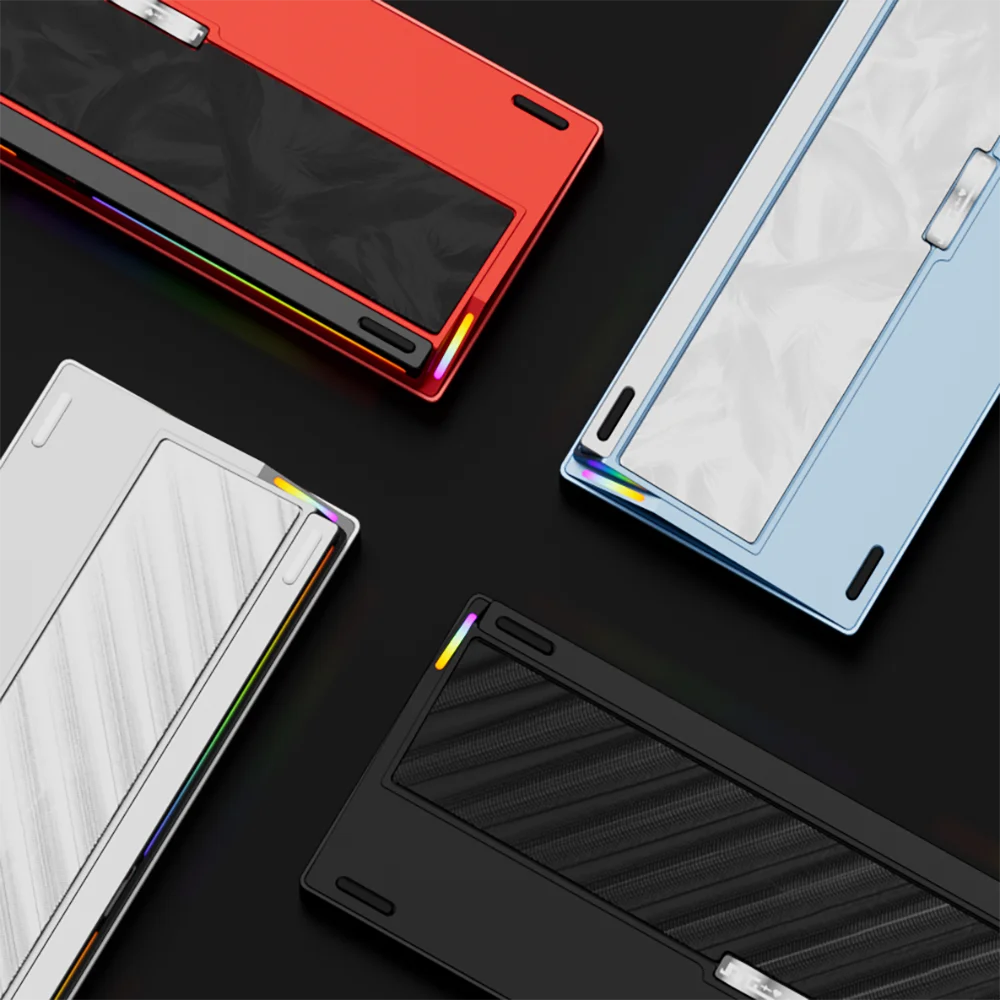

Feather-Textured Aluminum Backplate
The knurled aluminum backplate returns from the NUT75, now paired with a feather-textured finish instead of tempered glass.

Tool-Free Ball-Catch Structure
The case uses a magnetic ball-catch mechanism for quick, tool-free access.

Pogo Pin Daughterboard
The daughterboard connects via pogo pins instead of a ribbon cable, making disassembly simpler and eliminating the need to unplug delicate connectors.

Web-Based Driver
Access the NUT87's self-developed web driver directly with Fn + P. No software installation required.

Dual 8K Performance

8000Hz polling is supported in both wired and 2.4G wireless modes, delivering a theoretical 0.125ms polling interval.

• Wired: USB-C
• 2.4G Wireless: Dedicated 8K receiver
• Bluetooth: Multi-device connectivity
• Wireless Toggle: Dedicated physical switch
• Battery: 10,000mAh polymer battery
• Front Height: 19mm

Built for those who want the space and layout of a TKL without giving up the performance and features of a modern keyboard.

Specifications:
Nut87 Barebone Kit
Gasket Mount (Plate Mount Stabs Only)
Layout: 80%, 87 Keys
Tri-Mode Connection (Bluetooth, 2.4G Wireless & Type-C Wired)
Polling Rate: Wired 8K, 2.4G 8K
Case Material: 6063 Aluminium
Battery: 10,000 mAh
Plate Material: PC / FR4
Per-Key RGB, South Facing Hotswappable 1.2mm PCB
Barebone Weight: 2080g
Dimension: 358.8mm x 136.8mm

What's Included:
- Nut87 Barebone Kit (Switches and Keycaps Not Included)
- Switch / Keycap Puller
- Dust Cover
- USB A to USB C Cable
- USB Receiver
