Keyboard Specifications:

• Dimensions: 317.4 x 133.8 mm
• Front Height: 17.6 mm
• Typing Angle: 7°

Weight:

• Tri-mode:Case only: 1459 g
  Package weight (Alu Plate): 2346 g
• Wired-only:Case only: 1589 g
  Package weight (Alu Plate): 2478 g

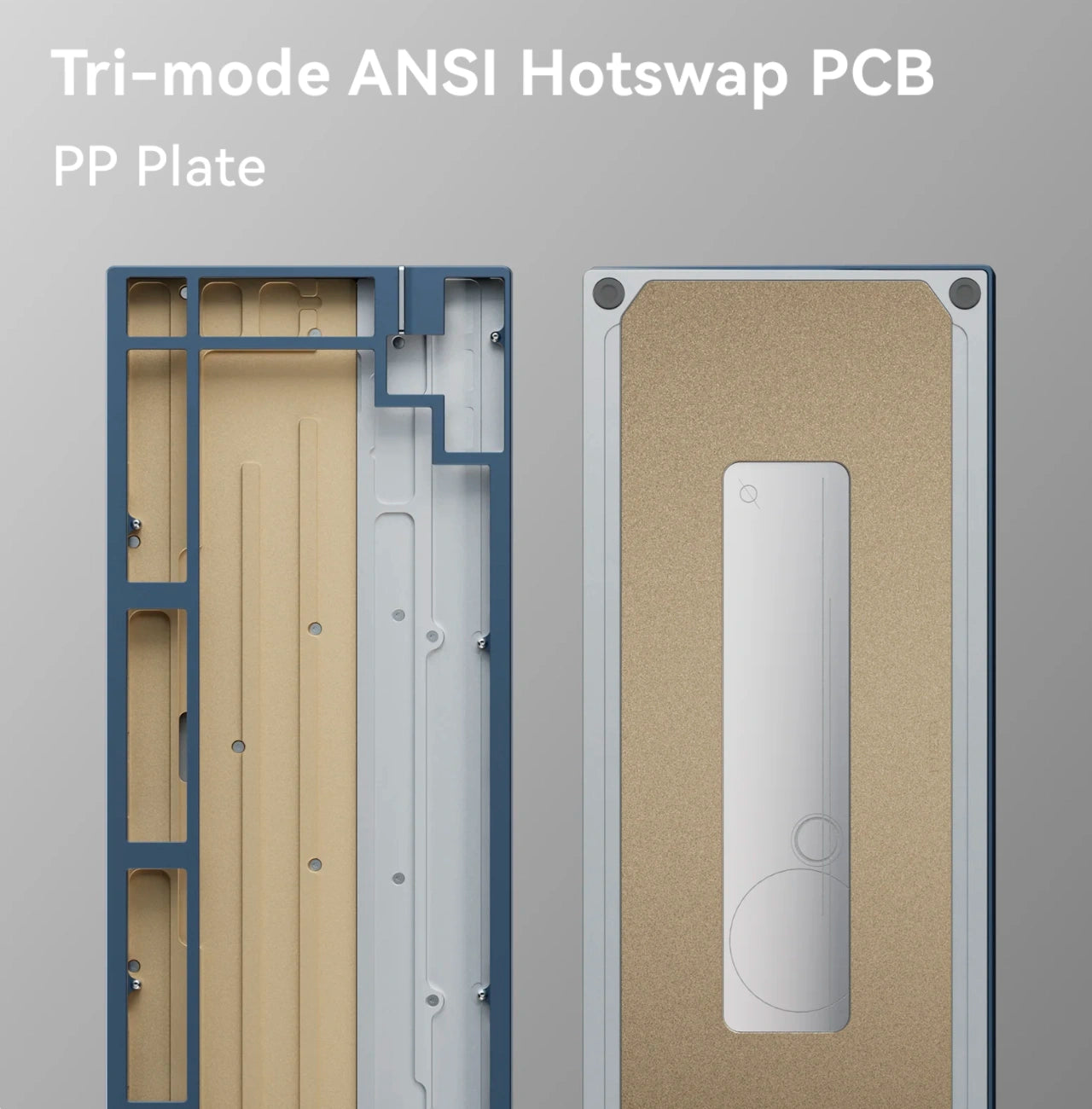

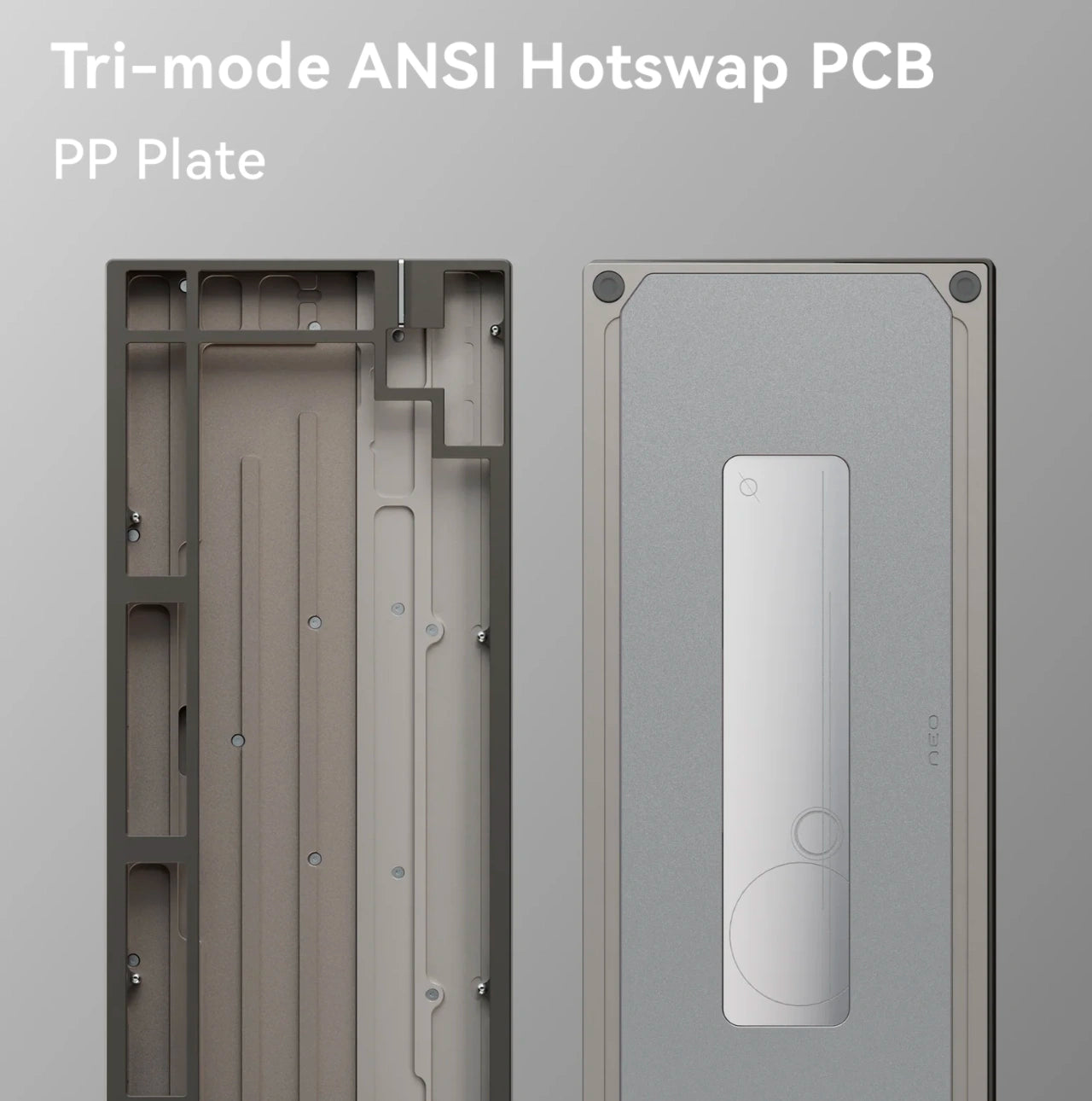

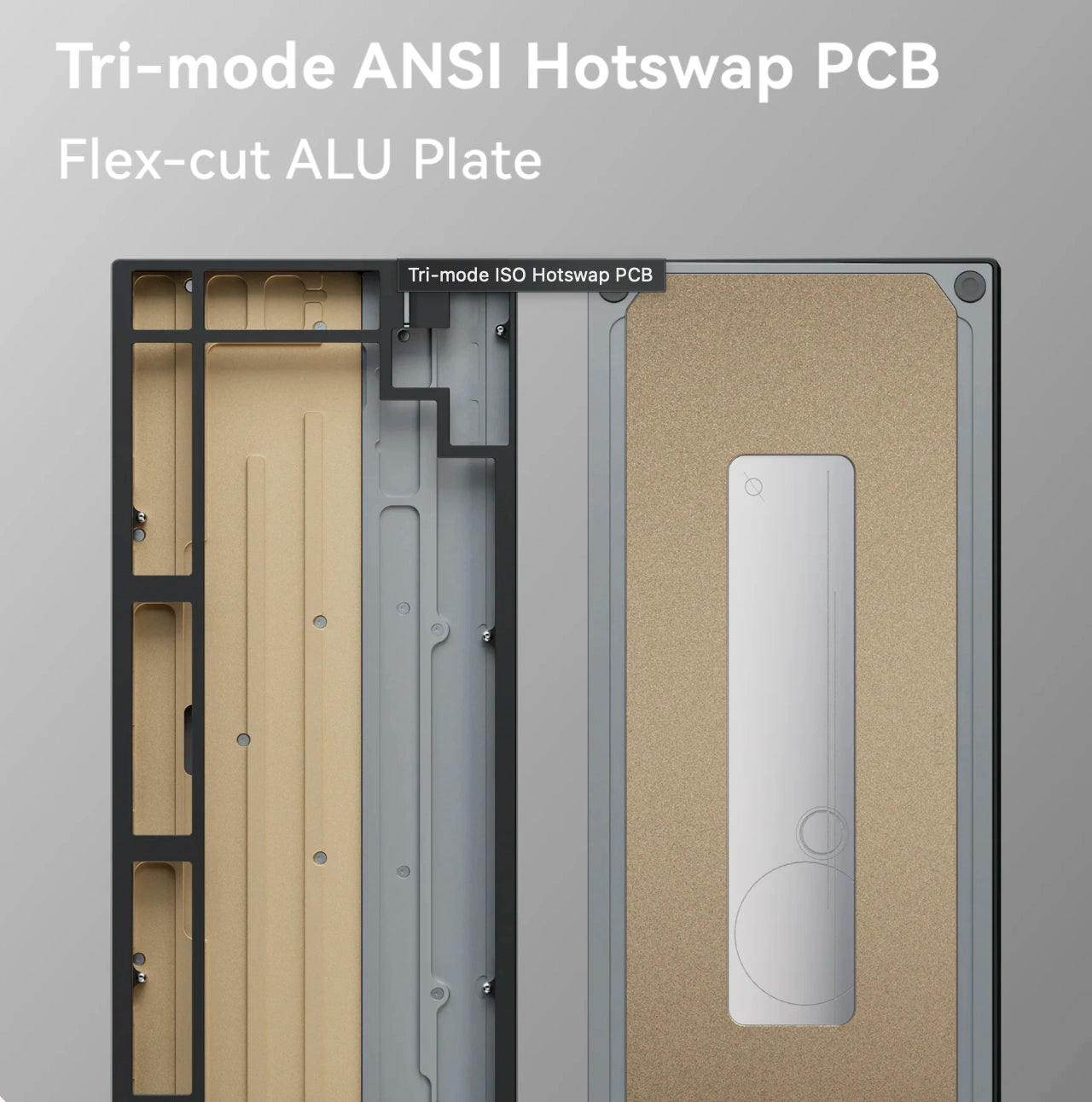

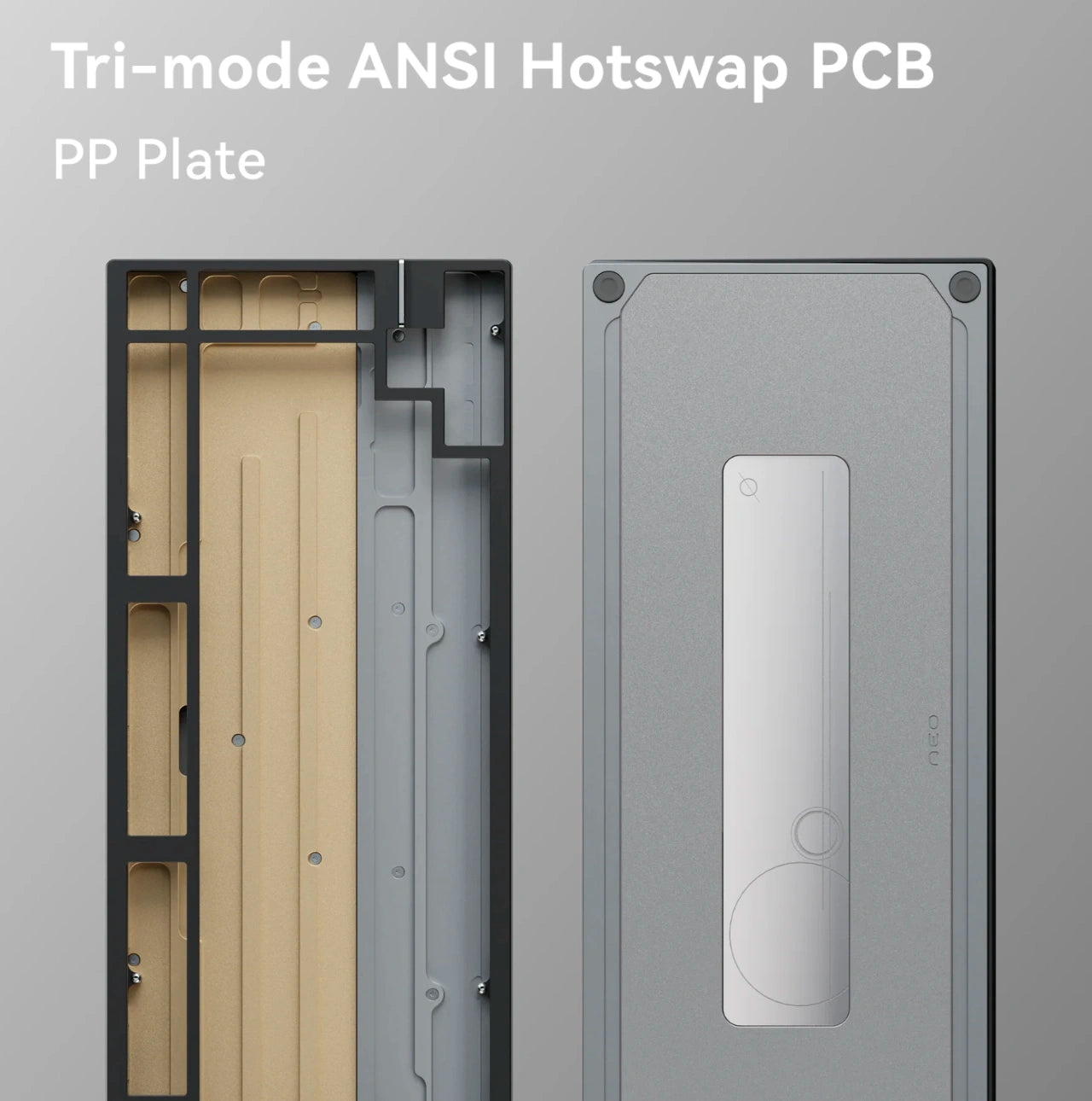

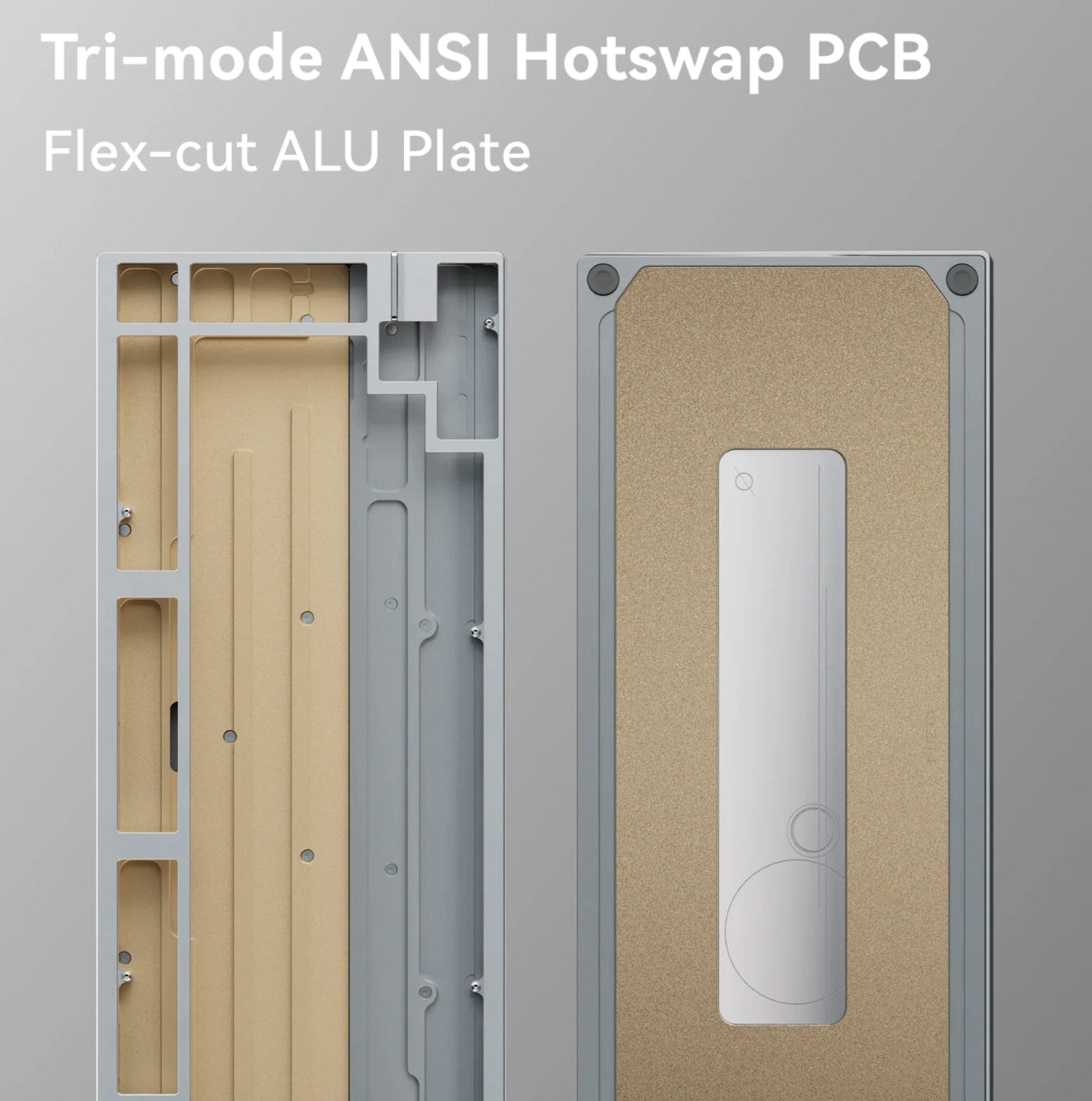

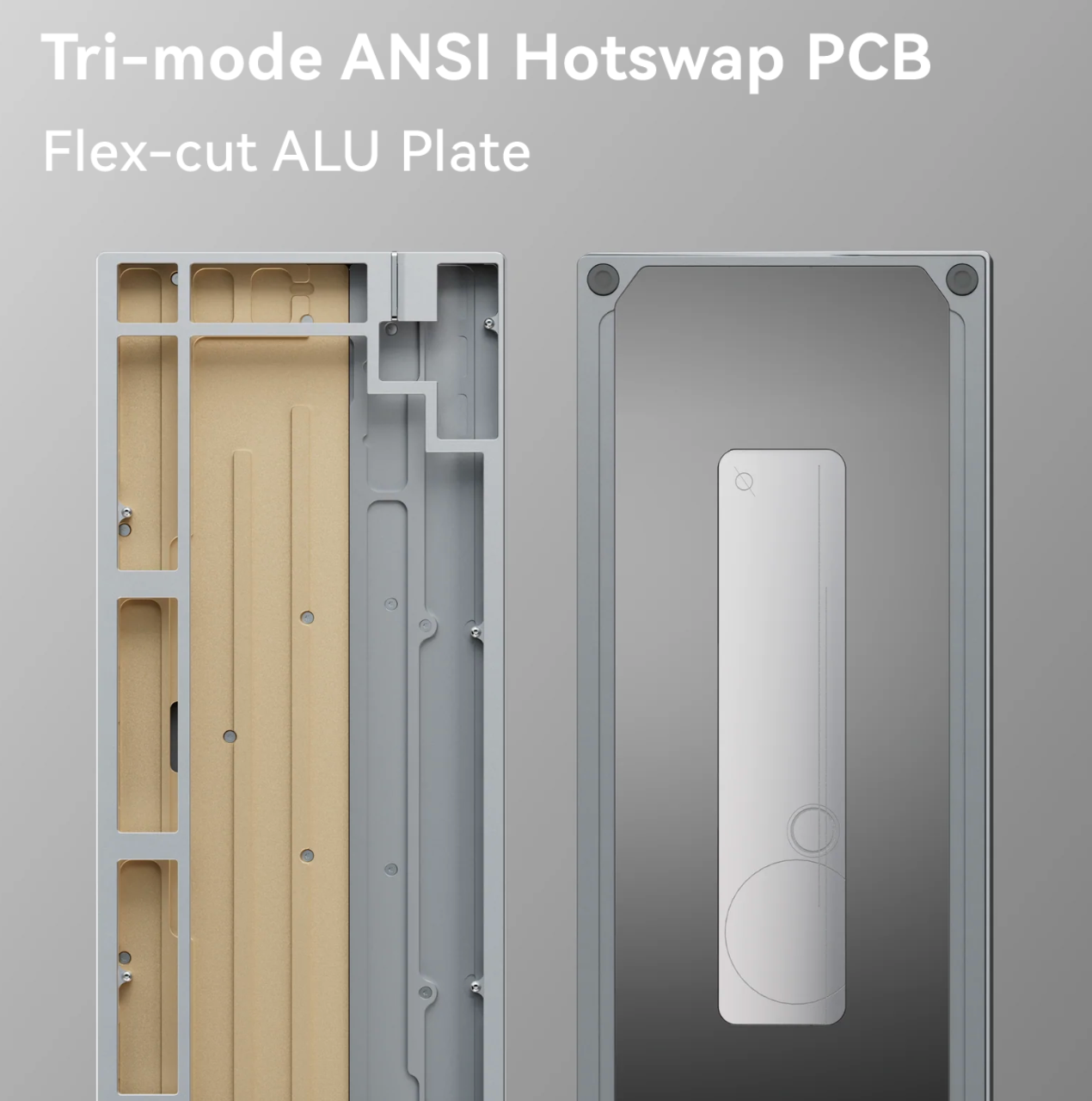

PCBs:

• Tri-mode Hot-swappable PCB (ANSI)
• Tri-mode Hot-swappable PCB (ISO)
• Wired Hot-swappable PCB (ANSI)

Contents

For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment.

For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment.

PCB Kit

• PCB of your choice
• 1x PE sheet
• 1x PCB foam
• Tri-mode PCB comes with a 2.4GHz dongle

Plate of your choice

Poron case foam

PCB daughterboard and magnetic connectors—installed

7x Silicone gaskets, 7x long Poron gaskets, 14x short Poron gaskets and Top-mount mounting screws

5x Positioning silicone(grey)

LED diffuser

6x Rubber feet(grey)

Backup screws

Free Gifts(Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced):

• Keyboard carrying case
• Keyboard pouch
• 1x Keycap & Switch puller
• 1x Screwdriver
• 1 set of PCB clip-in NeoStab
• USB-C cable
