Navi60 Barebone Mechanical Keyboard Kit

Navi60 is a 60% top mount / o-ring mount with a full CNC milled aluminium case and brass weight.

This project is a part of the #lainttl (time to live) program. Designed to be a high quality keyboard for both keyboard and Lain enthusiasts.

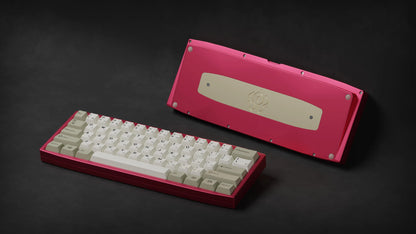

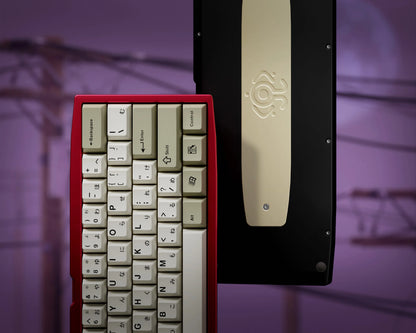

Its design is inspired by Abe’s original design of Lain’s personal Navi computer/keyboard. The kit comes with a two-piece case with a brass weight that is engraved with the Copland OS logo.

Board Specifications:
Typing Angle: 7°
Effective Keyboard Height (EKH): 22.94mm
Case Weight (w Brass Weight): 914g
Case Material: 6063 Aluminium w/ Brass Weight
Brass Weight: Sandblasted + Anti-Fingerprint / Anti-Tarnish Coating
Hardware Material: 18-8 Stainless Steel (Case Screws / Daughterboard Screws)
Mounting Support: Top Mount / O-Ring Mount
Plate Material: FR4, Aluminium, POM

PCB Specifications:
PCB Thickness: 1.6mm
Unified Daughterboard
QMK / VIA Supported
PCB-Mount Stabilizer Support

Kit Content:
- Two-Piece CNC Aluminium Case w/ Brass Weight
- PCB
- Plate
- Unified Daughterboard w/ JST Cable
- Plate Foam
- USB C Cable
- Medium Size O-Ring From Graveshift (40A Stiffness)
- Keycap / Switch Puller
- 3M Rubber Feet + Screws
- 2mm Hex Key + 1.5mm Hex Key
- Durock V2 Stabilizers
- Psychetype Pin
- Psychetype Sticker Pack (Art from Orange of OranArt Studio)
