Appearance & Design
The CU series is designed for those seeking a balance between refined aesthetics and advanced functionality. The unibody case of the Neo60 CU combines durability with modern design, delivering a smooth and immersive typing experience. Following the philosophy of "Performance meets elegance," the Neo60 CU stands out for its high-quality construction and technical features tailored for mechanical keyboard enthusiasts.

Acoustic Chamber Isolation

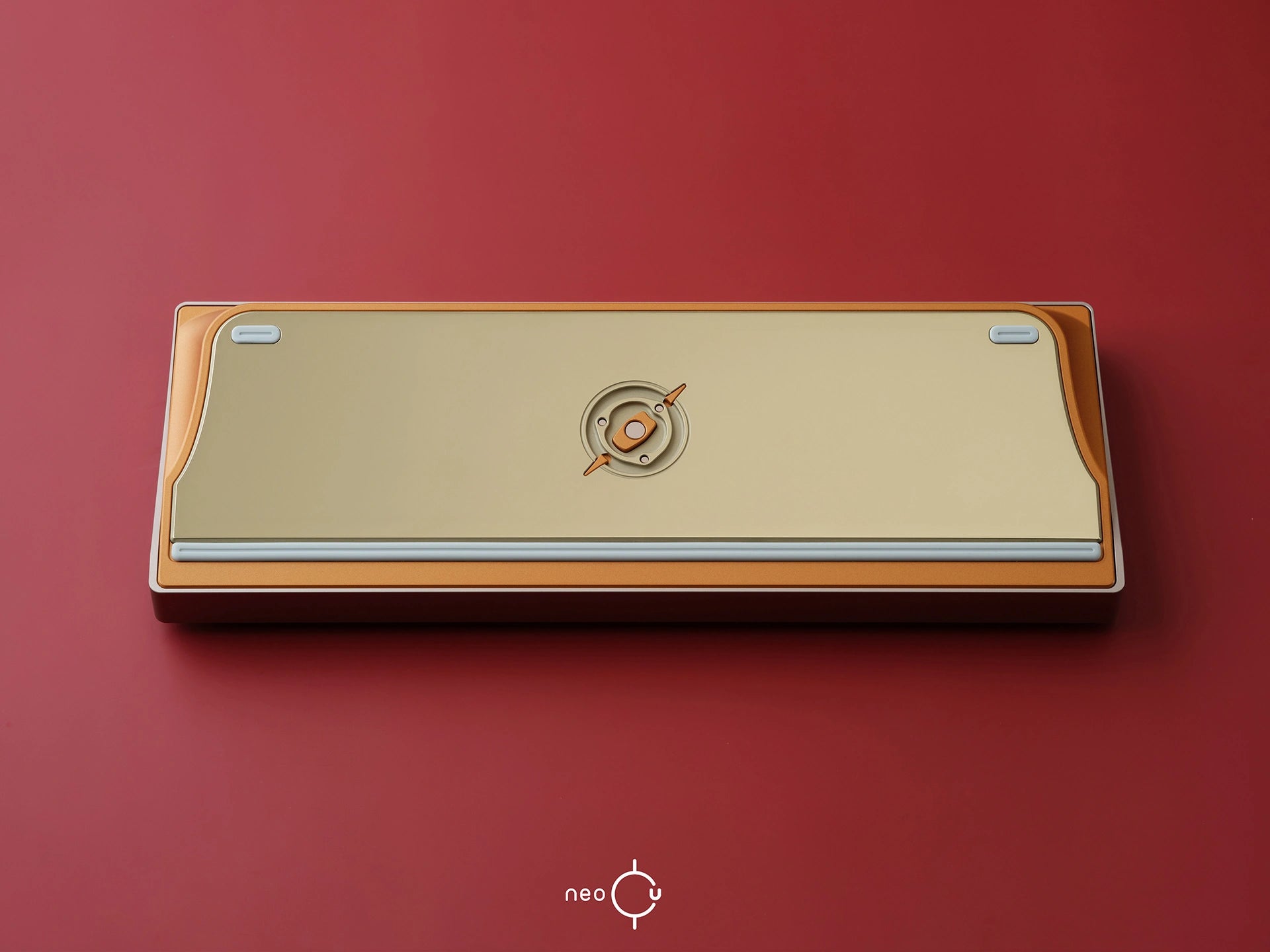

The Neo60 Cu feature a meticulously engineered bottom case designed to eliminate hollowness. Strategic cutouts optimize the internal space, ensuring a snug fit between the PCB and bottom case while preserving necessary flex for a natural typing feel. This chambered design, paired with the dense properties of the copper bottom, effectively dampens unwanted resonance—delivering a refined, full-bodied sound without relying on foam fillers.

Dual-Mounting System
The Neo60 Cu offer both PCB gasket mount (as seen in the Neo65) and a newly introduced isolated top mount. Previously, the ball-catch structure prevented top mounting due to conflicts with plate/PCB screw holes. With a refined internal structure, this limitation has been eliminated, allowing for greater customization.
Our isolated top mount design integrates thick silicone gaskets around the mounting screws, preserving the crisp feedback of a traditional top mount while reducing vibrations and eliminating direct metal-to-metal contact. This results in a more refined, stable typing experience without unwanted resonance.
Specifications
Specifications

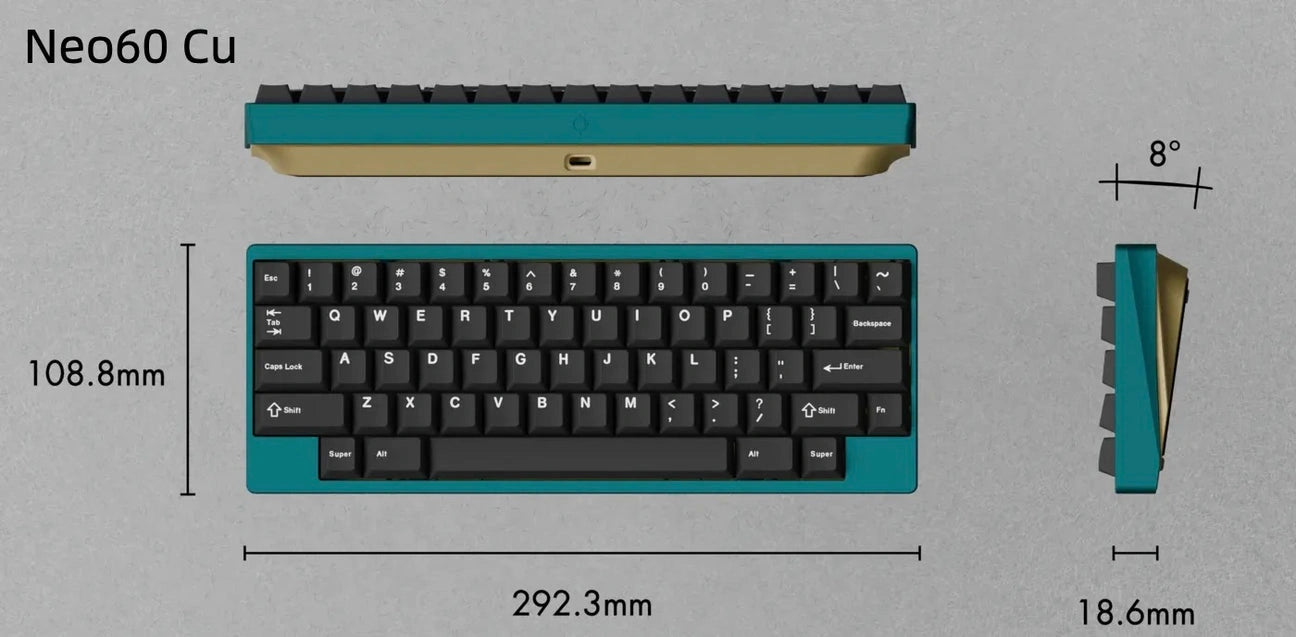

Typing angle:8°
Front height:18.6mm
Size: 108.8mm * 292.3mm
Weight (after build):
2.3kg (with tri-mode PCB),
2.47kg (with wired PCB)

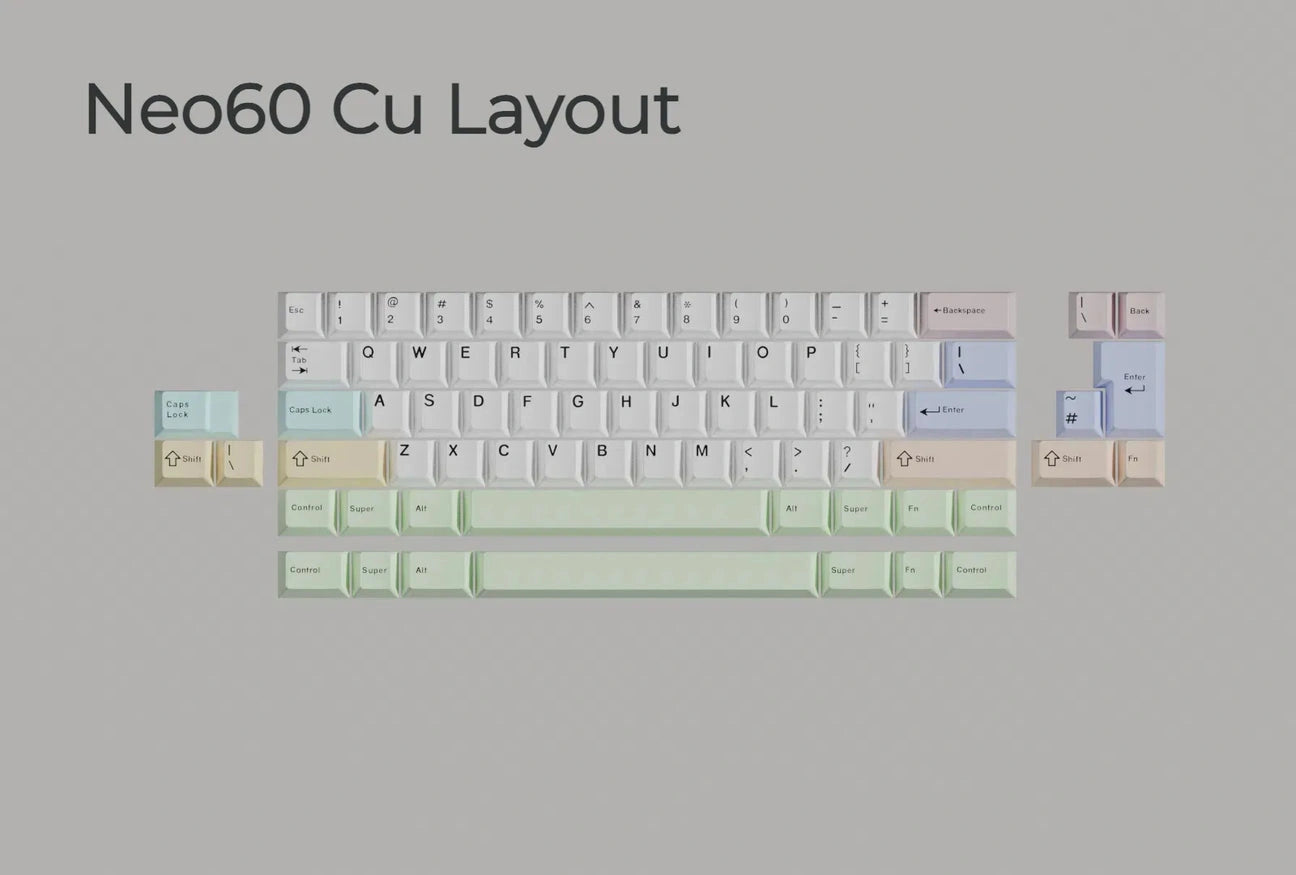

Layout options:

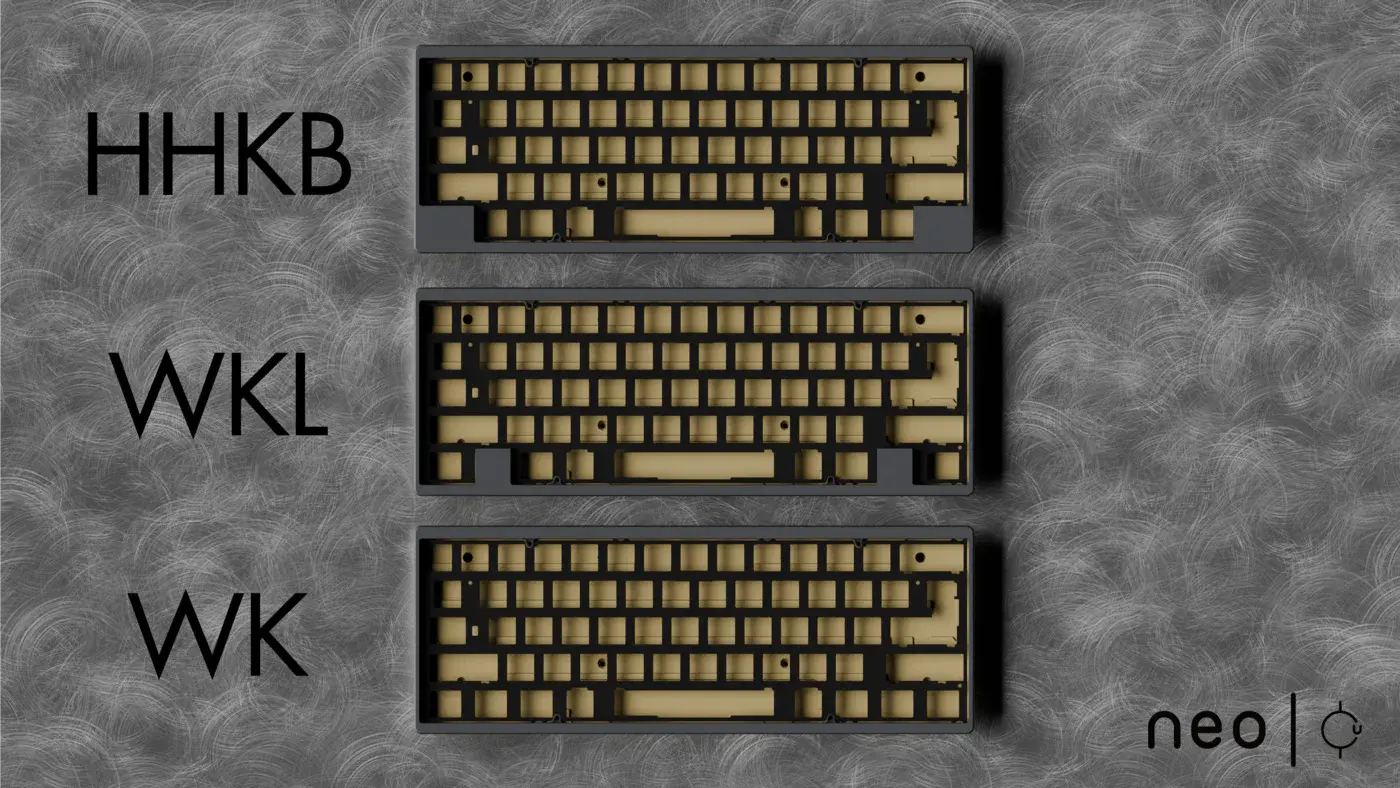

Neo60 Cu features a 60% layout with options for WK / WKL / HHKB

Specifications
Typing angle:8°
Front height:18.6mm
Size: 108.8mm * 292.3mm
Weight (after build):
2.3kg (with tri-mode PCB),
2.47kg (with wired PCB)
Layout options:
Neo60 Cu features a 60% layout with options for WK / WKL / HHKB

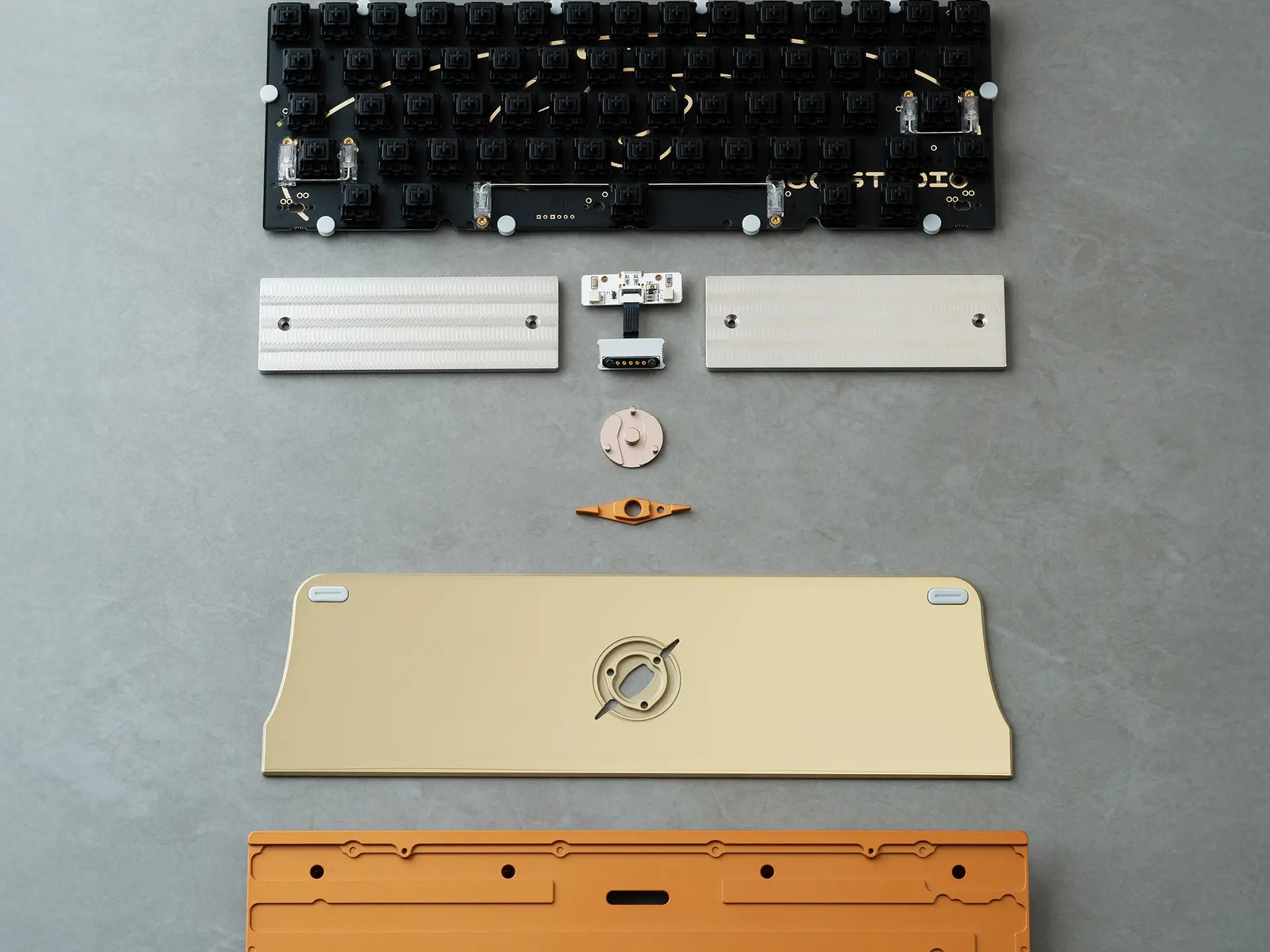

Parts List
Parts List
Keyboard Case
- For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
- For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
- For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment.
PCB Kit
- PCB of your choice
1x PE sheet
1x PCB Foam
Tri-mode PCB comes with a 2.4Ghz dongle
1x Plate of Your Choice
Poron Case Foam
PCB Daughterboard & Magnetic Connectors
Gaskets, Top-Mount Mounting Gaskets (Black) and Screws
Rubber Feet in 2 Colours
Backup Screws
Stand-Offs included with the Hotswap PCB
Free Gifts (If any gifts is missing or damaged, they will not be re-shipped or replaced)
- Carrying Case
- 1x Keycap & Switch Puller
- 1x Screwdriver
- 1 Set of Neo Stabs
- 1x USB-C Cable
