Mounting Design
The goal of manta was to have a few good mounting styles that allow users to customize the feel and sound without being overwhelmed with options. Each option is distinct and has a unique feel or sound that differentiates it from the other options. All options are optimized to ensure each one is noticeably different while still maintaining our high expectations for feel and sound. The three options are gasket sock, gasket grommet, and gummy oring.

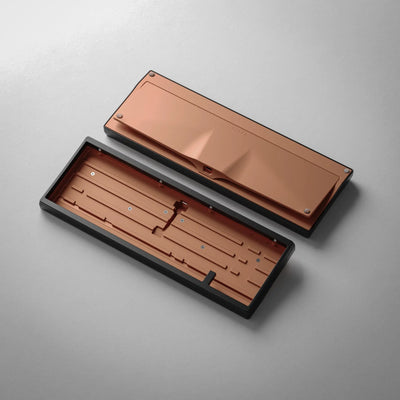

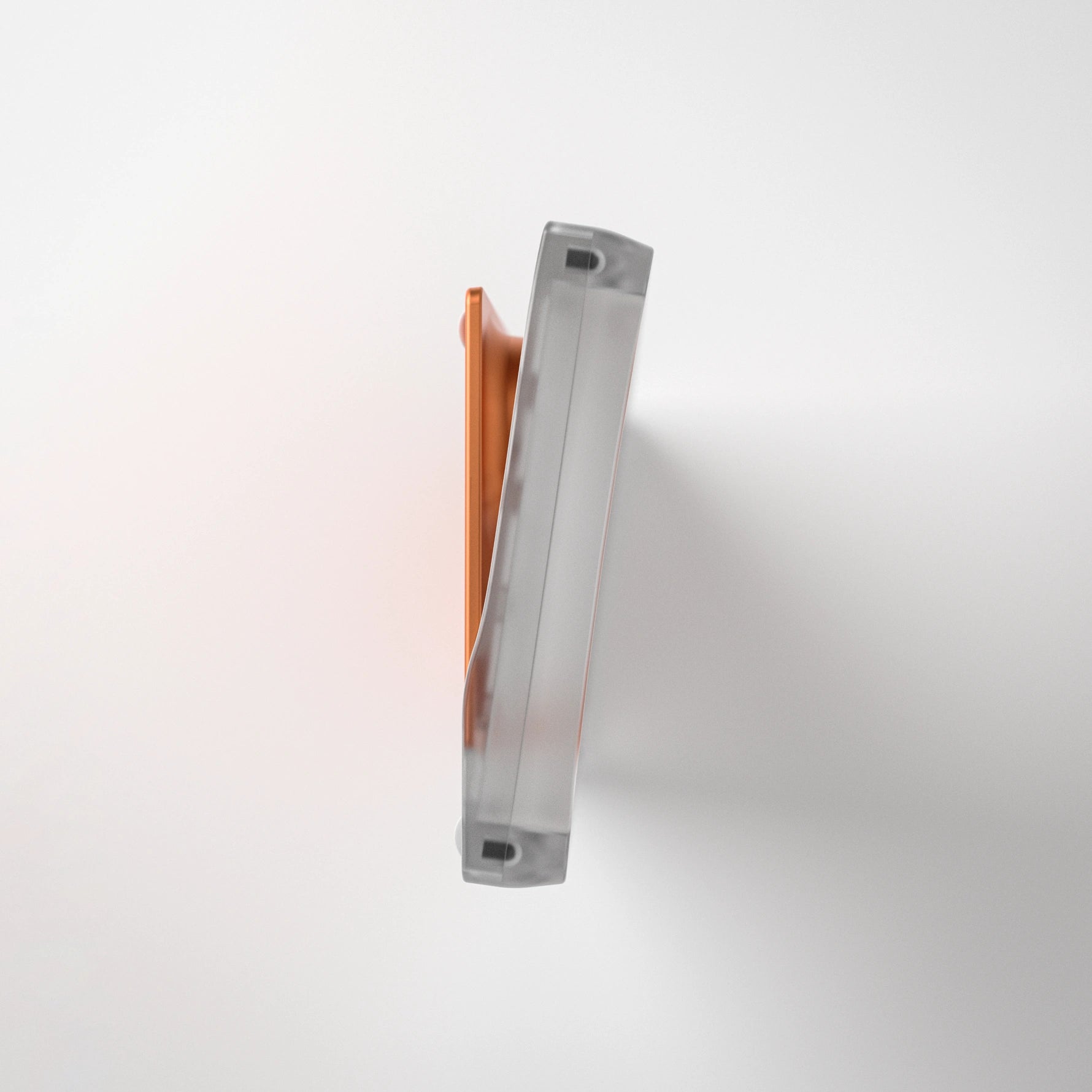

Case Specifications

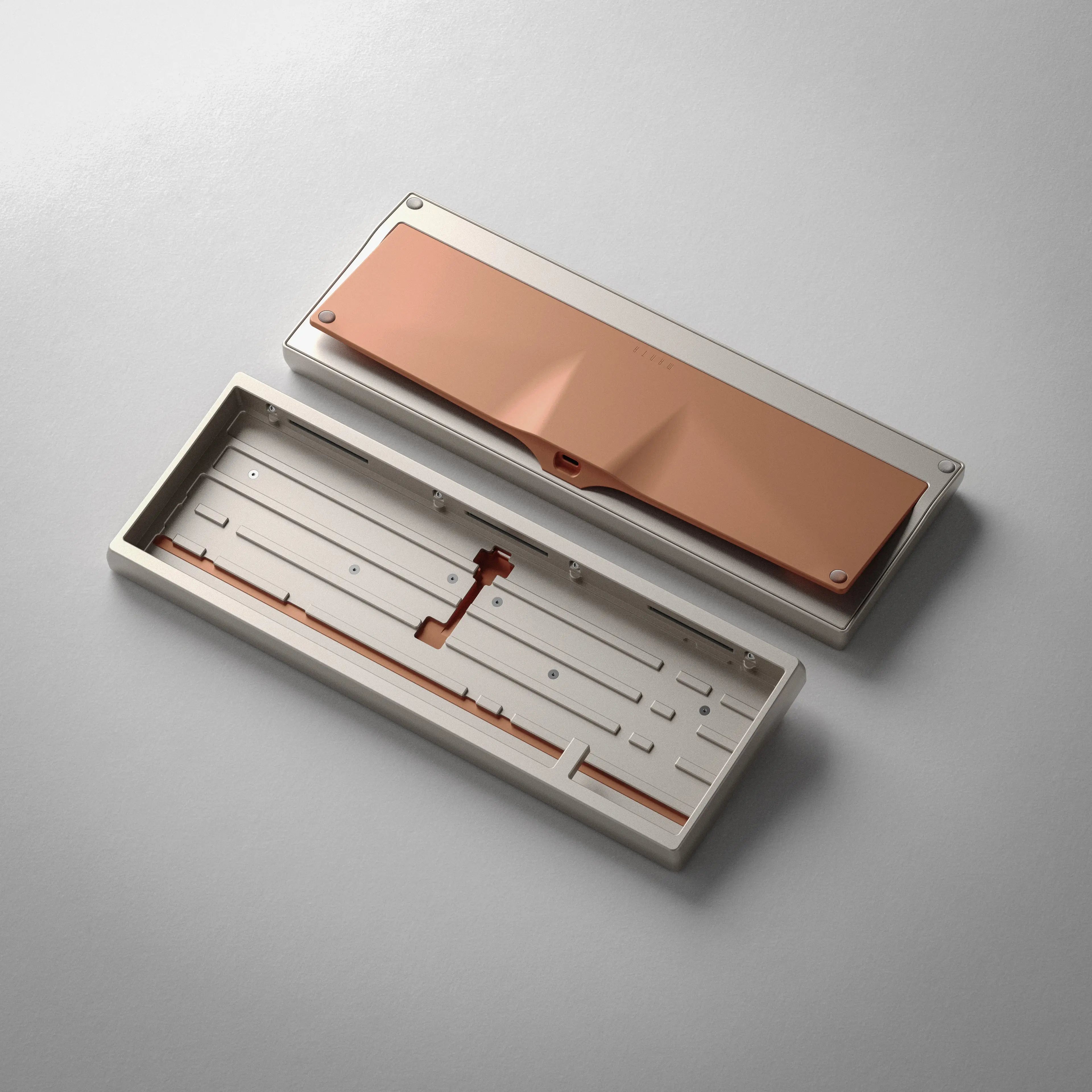

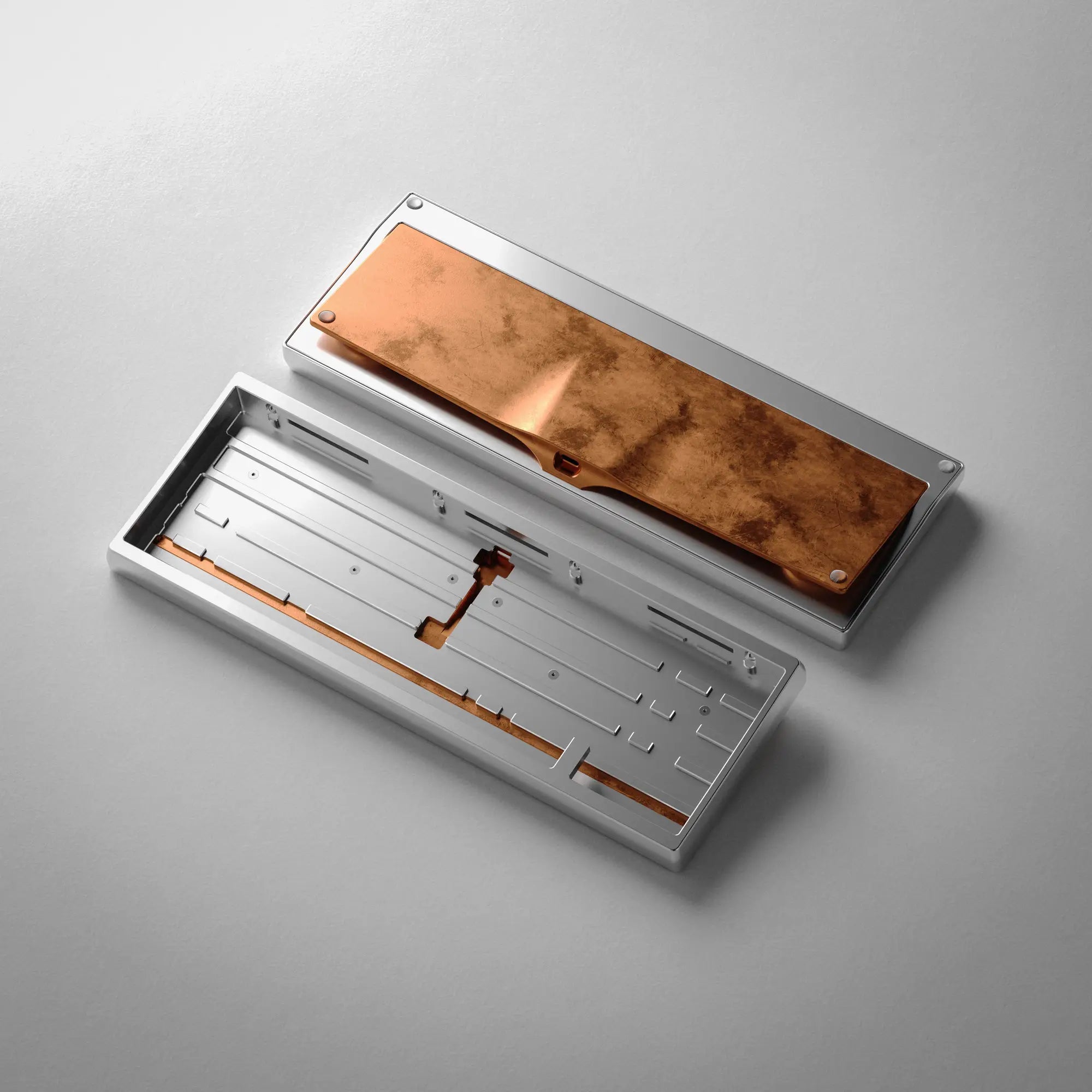

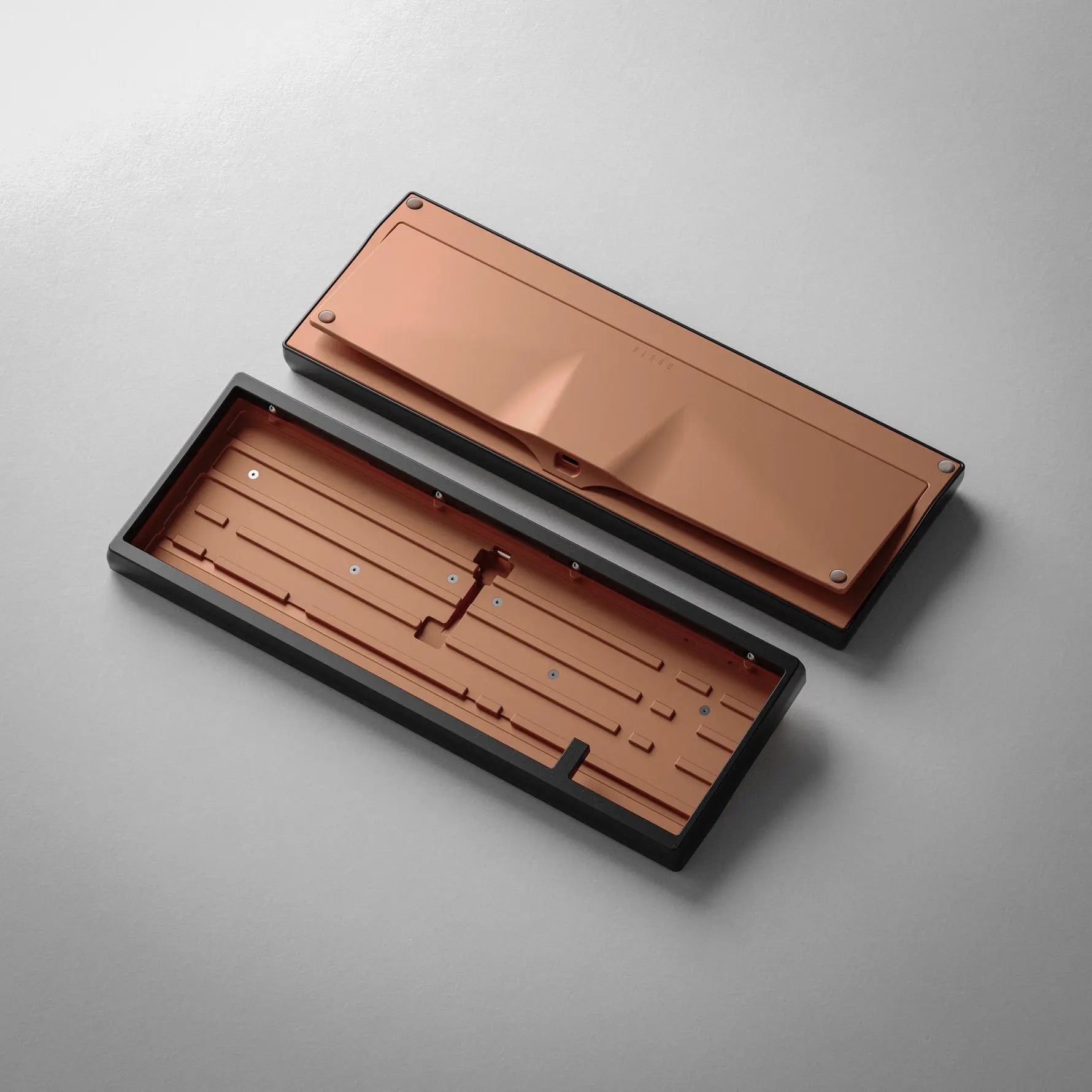

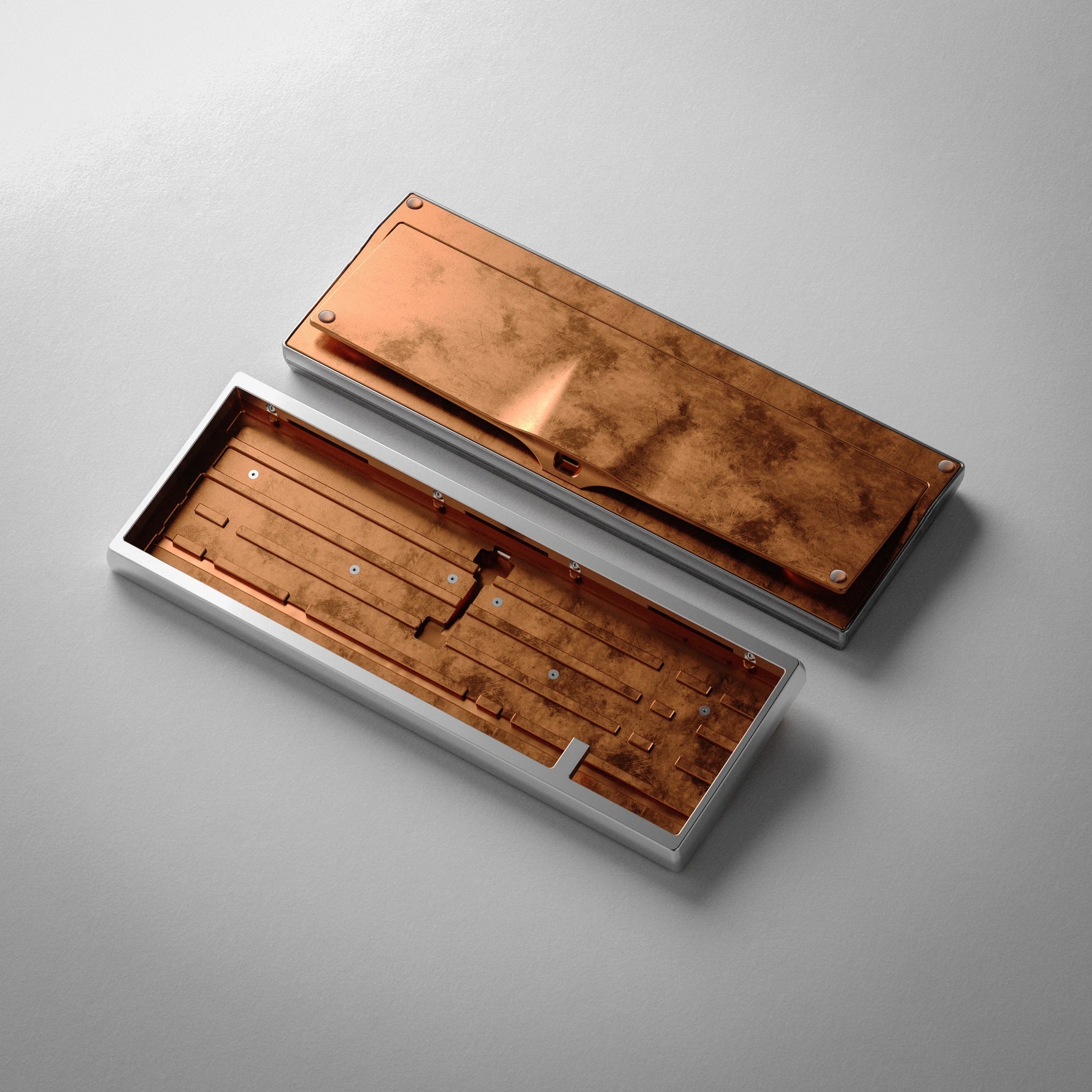

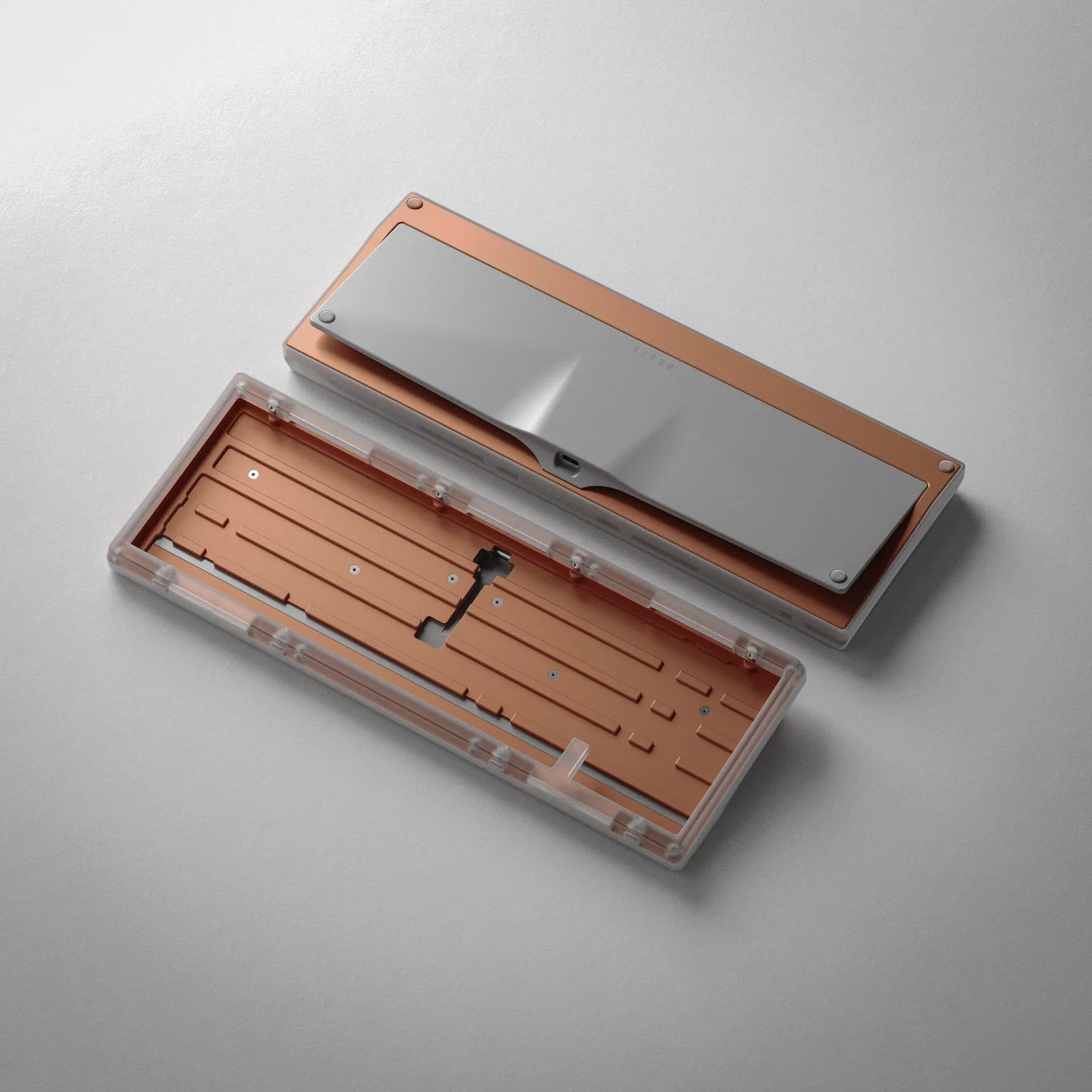

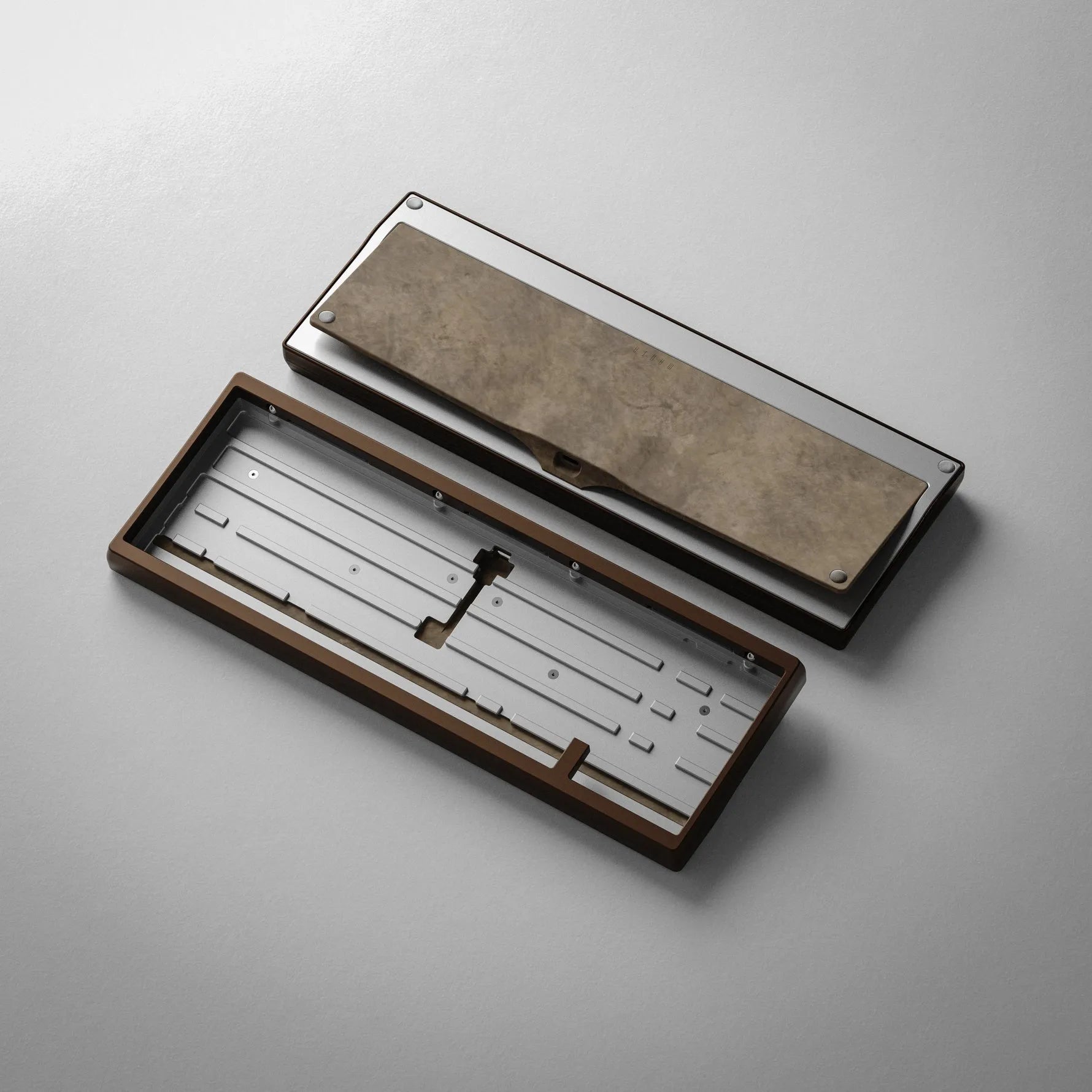

Materials: 6063 Aluminum, Acrylic, Copper, Stainless Steel

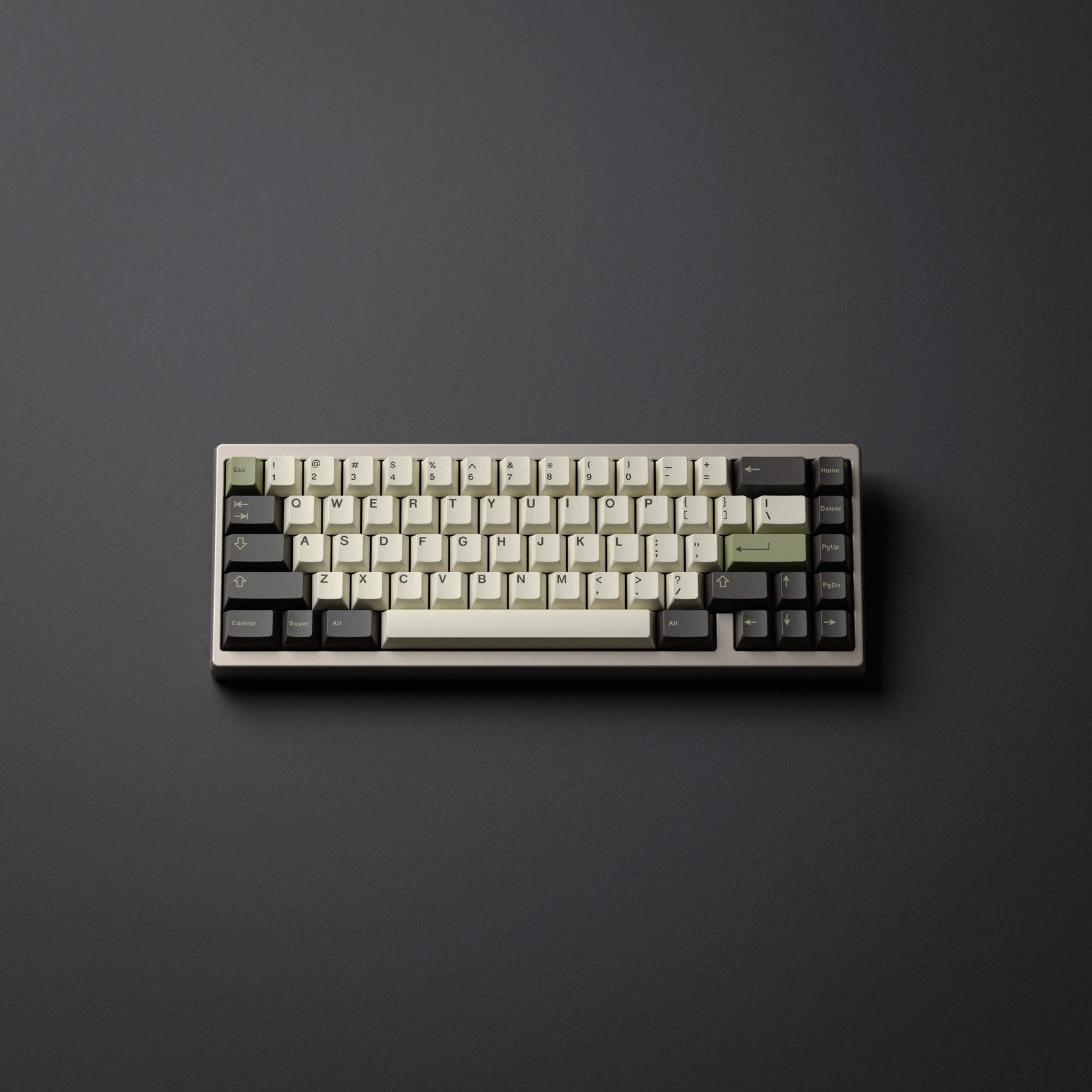

Layout: 65%

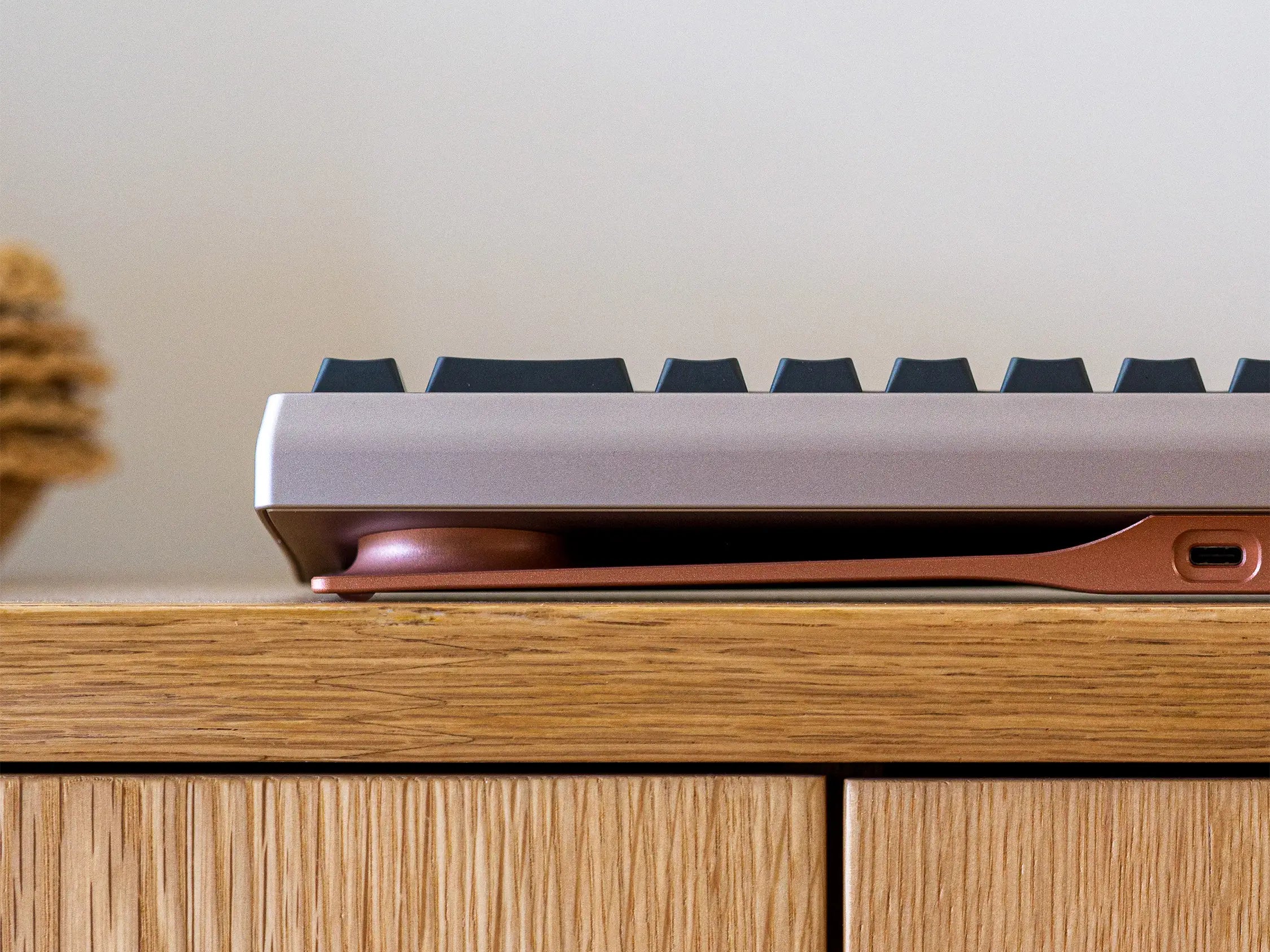

Typing Angle: 8 Degrees
Front Height: 16.9mm
EKH: 22.0 mm
Weight: 1.4-2.0 kg
Mounting: Gasket Sock, Gasket Grommet, Oring

PCB Specifications
Material: Black FR4
Thickness: 1.6mm
Connectivity: JST to Unified Daughterboard
Customizability: VIA
Type: Solderable and Hotswap
Designer: Gondolindrim
