Evo80 TKL Keyboard – A Perfect Balance of Form and Function
The Evo80 features a traditional 80% TKL layout, providing all the essential keys for both work and gaming. Its design retains the customizable F13 key for a symmetrical, aesthetically pleasing look, while a sleek metal accent strip beneath the function keys elevates its minimalistic style. Dynamic LED lighting adds an energetic touch, making the Evo80 stand out.
Superior Craftsmanship

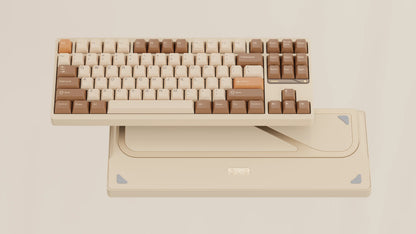

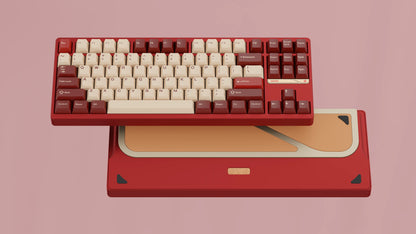

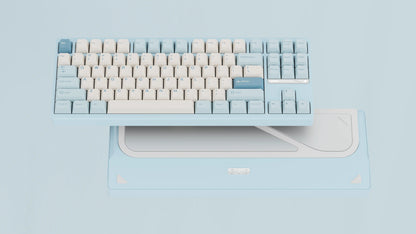

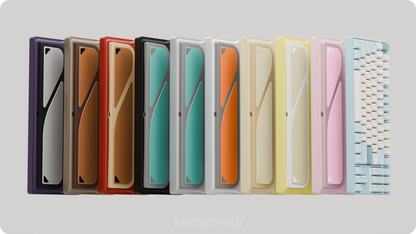

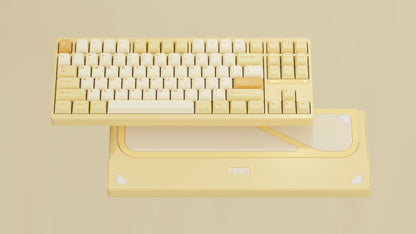

Crafted with precision, the Evo80's anodized cases undergo a premium 220-mesh sandblasting process, offering a smooth and vibrant finish. Available in multiple colors, each case is designed to feel just as good as it looks.
Butterfly Leaf Spring Structure
A key innovation in the Evo80 is its unique butterfly leaf spring structure, which shifts the fulcrum to the center for more balanced and stable typing support. Combined with a custom-designed gasket, this structure delivers soft, consistent, and bouncy feedback, reducing finger fatigue over extended use. Silicone dampeners eliminate hollow sounds and resonance, enhancing the acoustic experience.
Effortless Disassembly with Magnetic Connectors
The Evo80 features a tool-free disassembly system with magnetic connectors. Simply press and lift the case to access the internals, making modification easy.
Acoustic Excellence
The Evo80's custom-designed acoustic package enhances its sound profile, with materials tailored to its structure. Whether you're after a crisp, clacky sound or a thocky, marbly tone, the Evo80 delivers an exceptional auditory experience.
Switch and Plate Pairings
To simplify switch and plate choices, the Evo80 offers two pre-engineered combinations for different sound preferences:
Azure Linear Switches + FR4 Plate: Provides a crisp, clacky sound.
Oat Linear Switches + PP Plate: Delivers a more rounded, creamy typing sound.
Dye-Sub PBT Keycaps
The Evo80 comes equipped with Dye-Sub PBT keycaps, designed for durability and improved sound performance, enhancing the typing experience with each press.
Specifications:
Evo80
TKL F13 Layout
Butterfly Leaf Spring Mounted
Ball-catch Disassembly Mechanism and Magnetic Connectors
Case Material: Anodized or Spray-coated, CNC 6063 Aluminum
Weight: Two-piece
PCB: Tri-mode ANSI Hotswap Per-key RGB NKRO
Polling rate: Wired & 2.4GHz 1000Hz, Bluetooth 125Hz
VIA Compatible
Support USB-C, Bluetooth, and 2.4GHz dongle connection
Battery: Two 4000mAh Capacity
Keycaps: Dye-Sub PBT with color profile depending on case color
Dimensions: 357 x 136.4mm
Weight: 1870g
Compatibility: Windows, Mac, Linux, iOS, Android

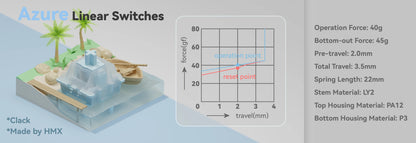

Specifications (HMX Azure with FR4 Plate):
Linear
Operating Force: 40g
Bottom Out Force: 45g
Top Housing: PA12
Stem: LY2
Bottom Housing: P3
Total Travel: 3.5mm
Spring: 22mm Single Stage
Lube: Factory Lubed
Specifications (Keygeek Oat with PP Plate):
Linear
Operating Force: 46g
Bottom Out Force: 45g
Top Housing: PA12
Stem: LY2
Bottom Housing: P3
Total Travel: 3.6mm
Spring: 22mm Single Stage
Lube: Factory Lubed
What's Included:
- Evoworks Evo80 Keyboard
- 1 Keyboard Case
- 1 PCB, Daughterboard, Internal Battery
- 1 Plate (FR4 or PP)
- 1 Set of Switches
- 1 Keycap Set
- 1 Acoustic Package (2 Poron Case Foam, 1 PET Sheet, 1 IXPE Sheet, 1 Plate Foam)
- 1 Set Stabilizers
- 1 Set Butterfly Leaf-springs and Gaskets
- 1 Set Silicone Corner Protectors and Rubber Feet
- 1 Carrying Case
- Spare switches, screws, leaf-spring dampeners, gaskets, case silicone dampeners
- USB-C Cable
- 2.4GHz Dongle
- Keycap & Switch Puller
- Mac Add-on Kit
