The Flip 6P keyboard kit is a versatile 60% layout with a built-in numpad. Its innovative design allows you to switch between a standard and southpaw layout by simply flipping the top case and swapping the main and numpad areas, with options for mirrored and non-mirrored pads. The pogo pin PCB design enhances ease of customization.
Additionally, the main area can be configured as either HHKB or WKL by attaching a detachable badge on the top case. The entire design prioritizes convenience and practicality while offering enhanced playability.
Specifications:
-

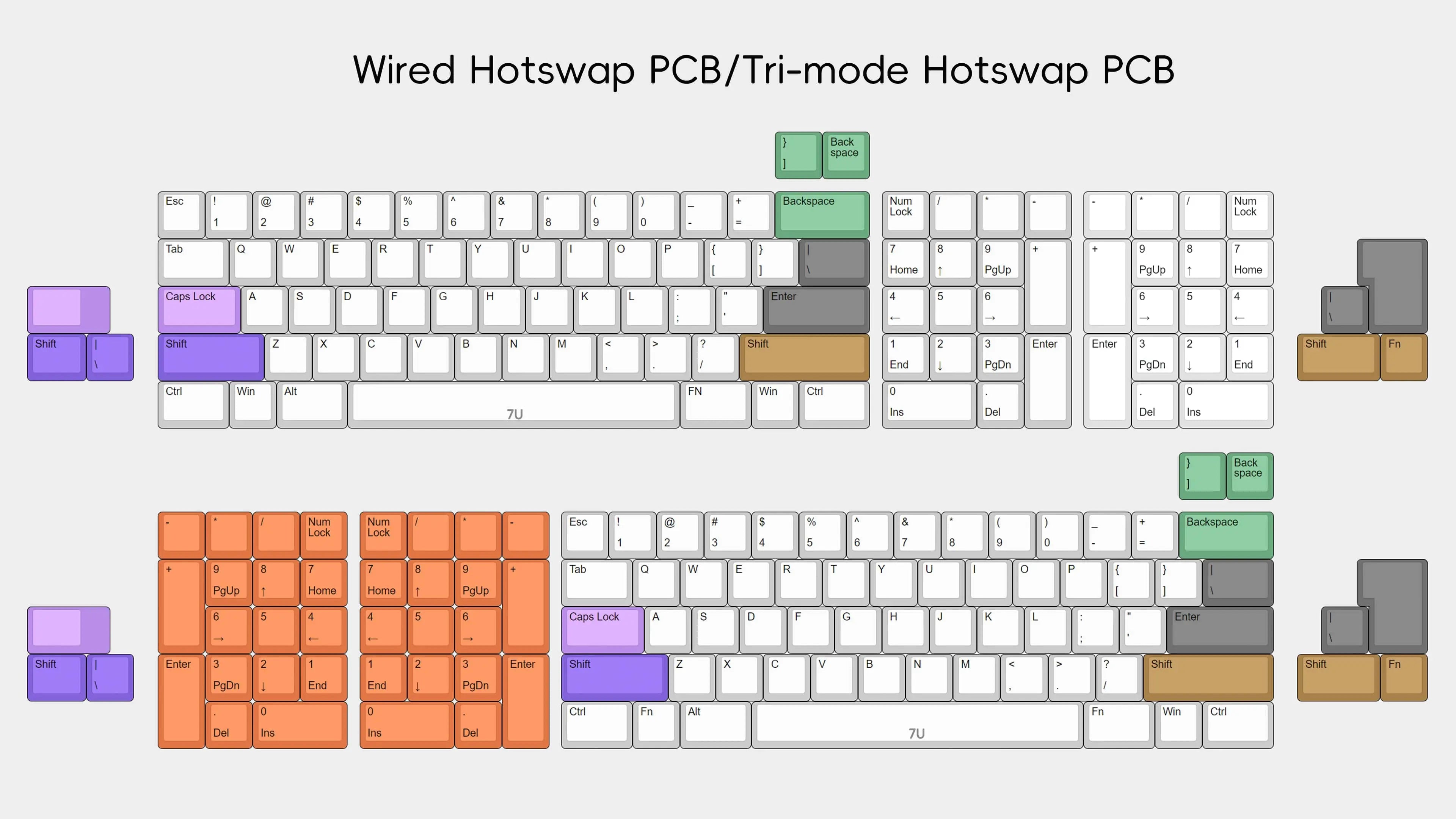

Layout: 60% + Pad, Southpaw Compatible (with options for Mirrored and Non-Mirrored Pads)
-
Typing Angle: 7 degrees
-
Dimensions: 401.9mm x 116.2mm x 32.4mm
-
Mounting Style: PCB Gasket Mount, Sandwich Mount
-

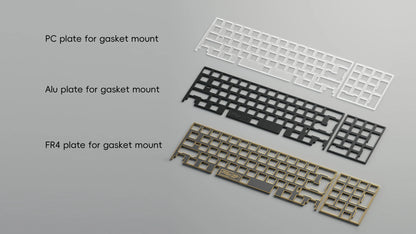

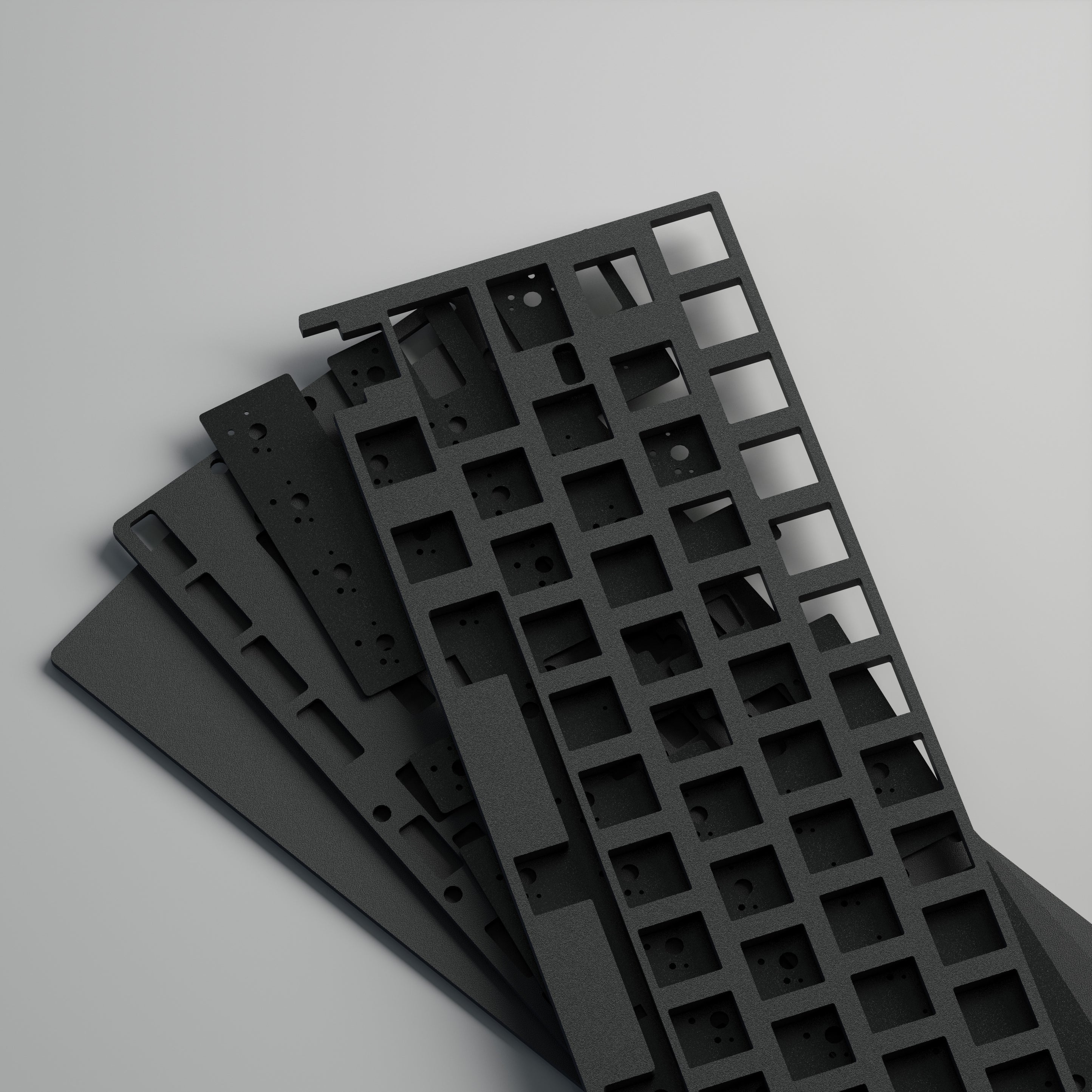

Gasket Mount Plate: 1.5mm, in three split sections
-
Sandwich Mount Plate: 1.5mm Aluminium, Anodized Gold / Black
-
Weight Options: Brass (Transparent Electrophoresis) or Stainless Steel PVD
-
Case Material: 6063 Aluminium
-
PCB: 1.6mm Thickness, Tri-Mode Hotswap (with 4400mAh Battery, 2.4G, Bluetooth, and Wired modes)
-
Polling Rate: Wired 1000Hz, Tri-Mode (1000Hz in 2.4G and Wired, 125Hz in Bluetooth)
-
Software Support: Tri-Mode on VIA

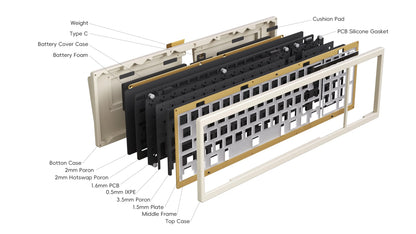

Box Contents:
- 1x Top Case
- 1x Bottom Case
- 1x Middle Frame (Anodized Black / White keyboards come with an Alu Gold-colored Middle Frame; other colors come with an Alu Black-colored Middle Frame)
- 1x Weight (Anodized Black / White keyboards come with a brass weight; other colors come with a stainless steel PVD weight)
- 1x PCB (includes one main PCB, one mirrored numpad PCB, and one non-mirrored numpad PCB / Tri-Mode PCB includes a 4400mAh battery)
- 1x Type-C Daughterboard
- 1x PC Plate for Gasket Mount
- 1x Foam Kit (2mm Poron, 2mm Hotswap Poron, 0.5mm IXPE, 3.5mm Poron, and Battery Foam)
- 1x Accessories Bag
- 1x User Guide
- 1x Carry Case
Note:
- If you wish to build using the sandwich mount, you will need to purchase the sandwich mount plate separately.
- Stabilizers, switches, and keycaps are not included. You will need to purchase 7pcs 2u and 1pc 7u screw-in stabilizers (1.6mm).
