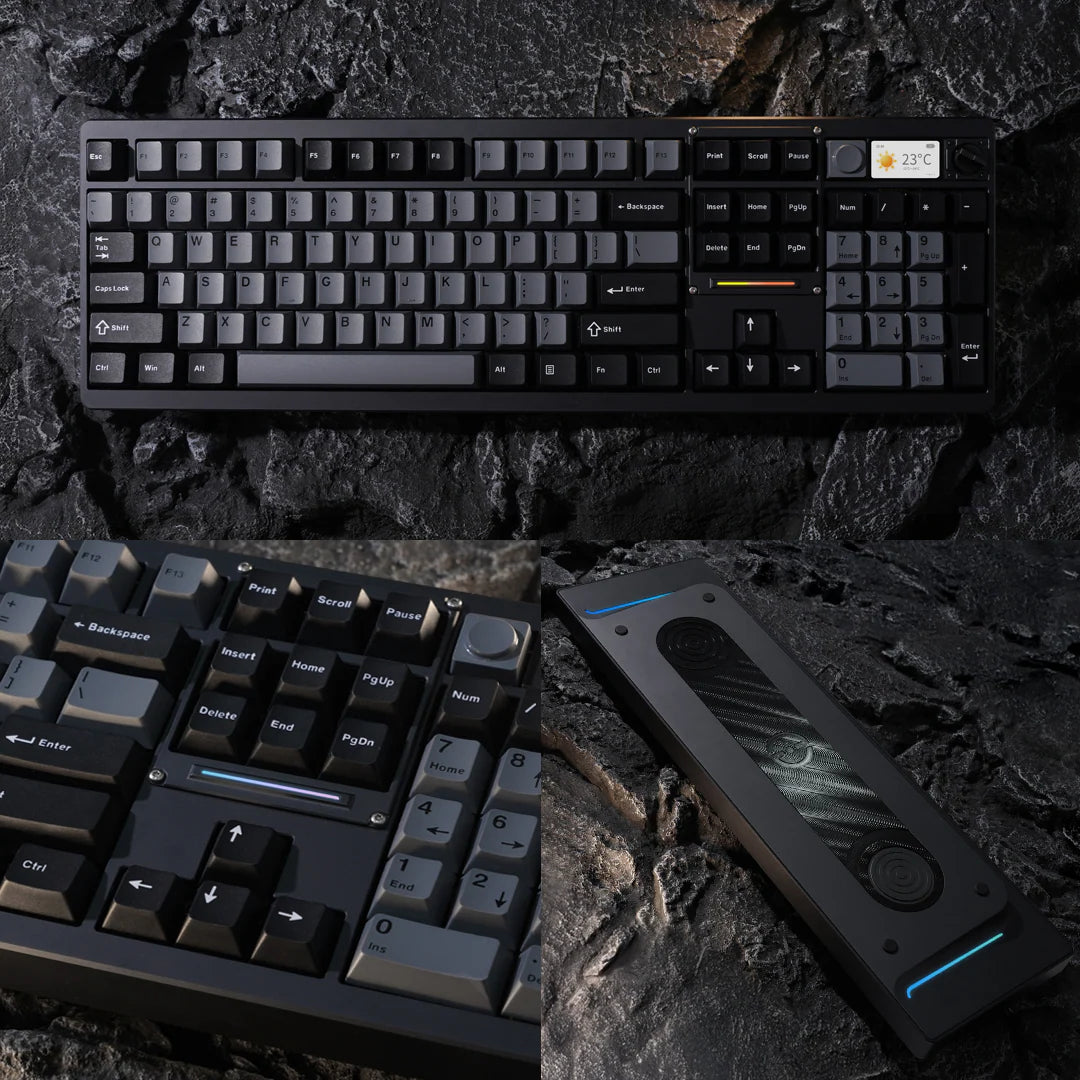

Chilkey ND104 Prebuilt Mechanical Keyboard Kit

Smart Display, Smarter Workflow

Built-in screen with three modes — calculator, clock, and dynamic backgrounds — for both utility and style.

Your Desktop Command Center – Control with a Twist

The ND104’s hot-swappable knob offers smooth, precise control for volume and media.

Its textured surface ensures a secure grip, complementing the sleek aluminum case. Paired with the smart display, it puts intuitive command at your fingertips—keeping you efficient and in control.

Glare-Free Immersive RGB

The light softly emanates from the gaps between the keys, creating a unique surround lighting effect that minimizes direct glare and enhances an immersive desktop ambiance.

Product details

Specifications

Case: 6063 Aluminum
Color & Surface Finish: Anodizing(Shadow Black) / Acustatic (Lunar White,Sky Blue,Soft Pink,Lumen Yellow)
Sound Dampening: 5 layers
Backlight: RGB
Plate Material: FR4
Weight Material: Aluminum
Process: Anodizing / Acustatic
Battery Capacity: 4000mAh × 2 (8000mAh Total)
Battery Life (Lighting On/Off)
BLE Mode (Lighting & Screen On): 28h / (Off): 118h
2.4G Mode (Lighting & Screen On): 29h / (Off): 109h
PCB Material: FR4
Feature：Flex cut
Thickness：1.2mm,1.6mm
QMK/VIA Support: VIA Supported
Latency Data
USB: 5.88ms / BLE: 12ms / 2.4G: 8.37ms
Number of Keys: 106 keys
Driver Type: Standalone Driver
Full N-Key Rollover (NKRO): Yes
Layout: 104%
Hot-Swap: Yes
Bluetooth Version: BLE 5.4
Bluetooth Protocol: BLE
Connectivity: Tri-Mode (USB Cable / BLE / 2.4GHz)
Simultaneous Device Connections: 3 Devices
Dimensions (L×W×H):437.6 × 140.1 × 34.4 mm
Bluetooth Polling Rate:133Hz
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate:1000Hz
OS Support: Windows / macOS / Linux / Android

Contents

ND104 keyboard

User Manual

2.4G receiver

USB-C Cable

Elastic Bar Mount

Gasket Mounts

Included in the Box

Keyboard Kit
Manual
USB C Cable
2.4G Dongle
Keycap
Breeze Switches
