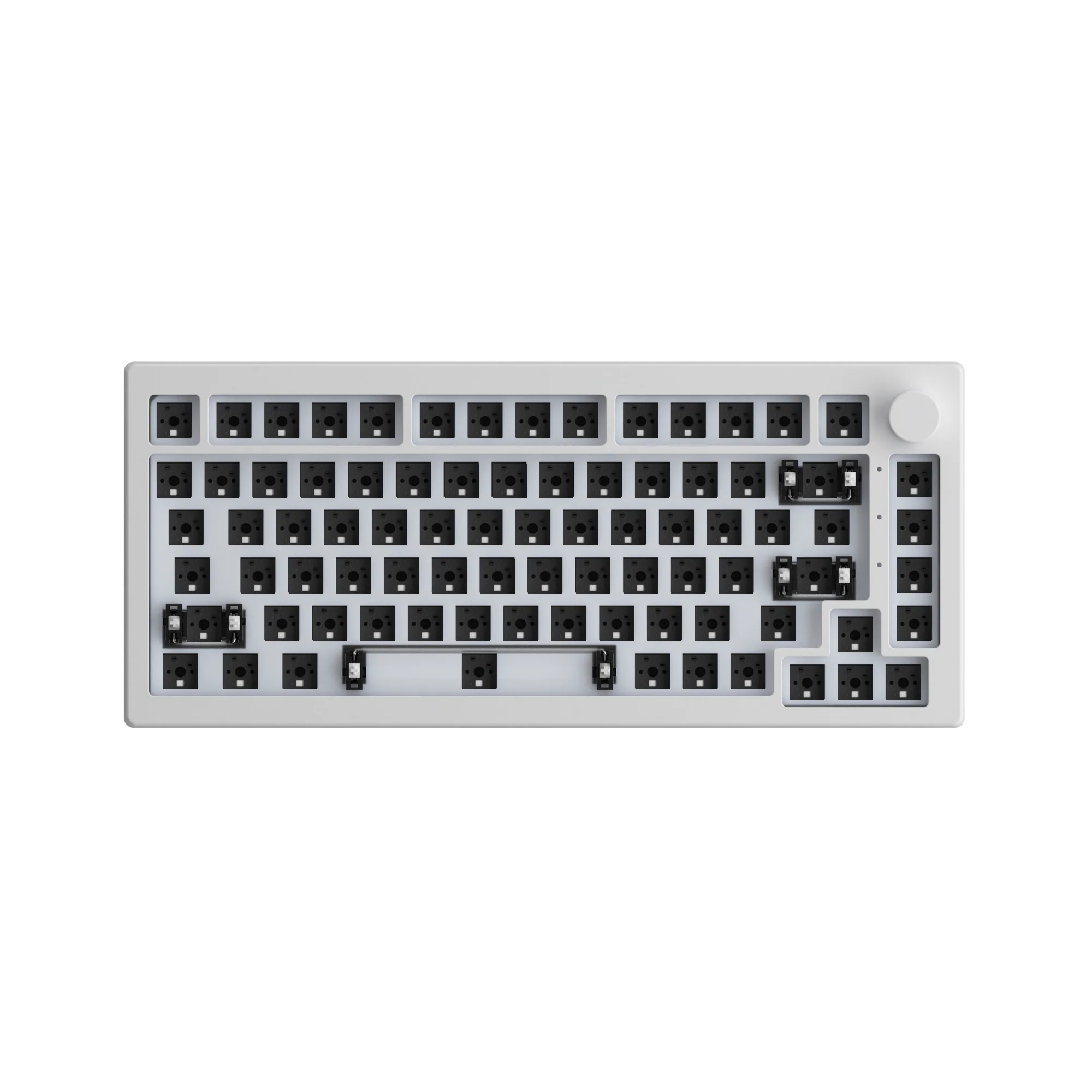

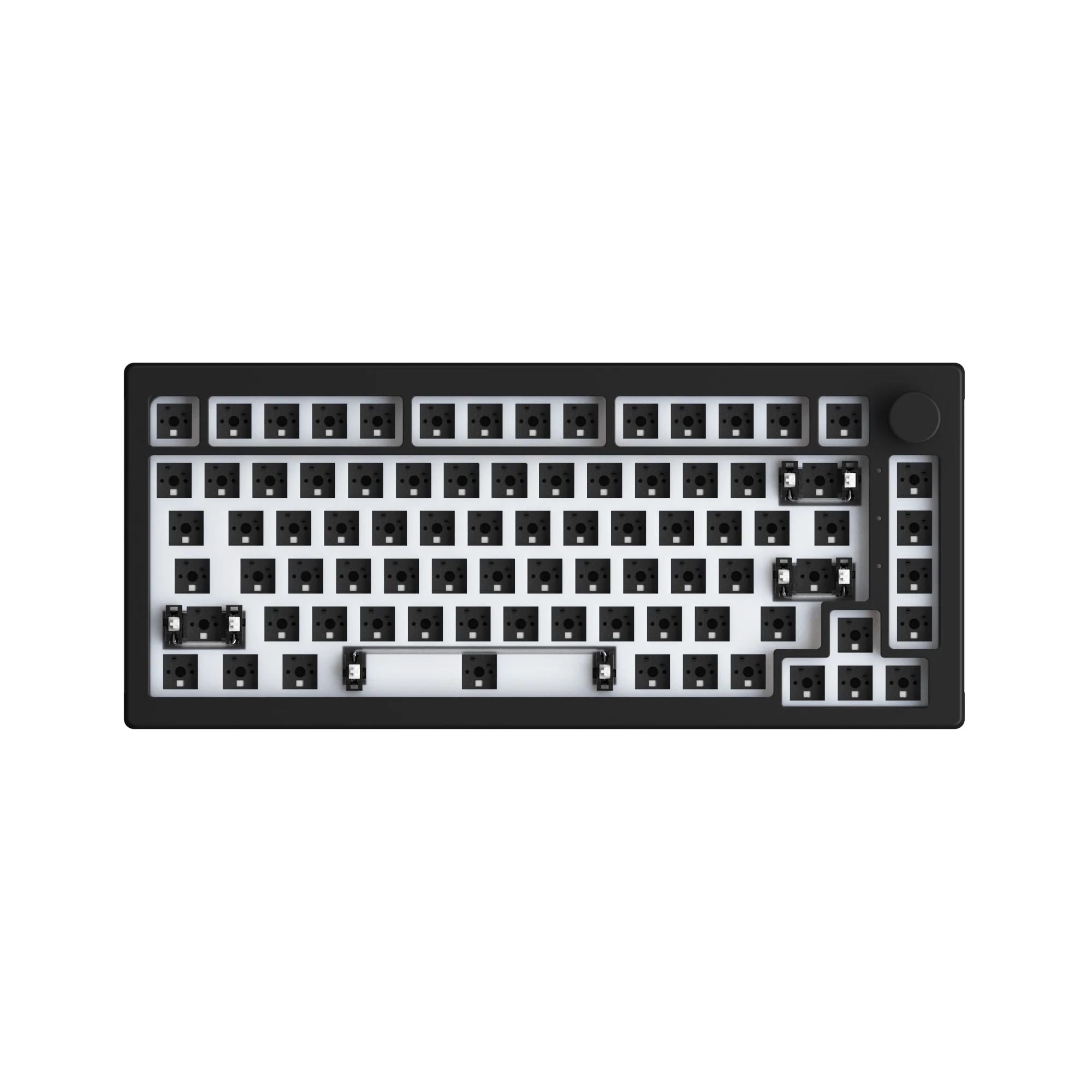

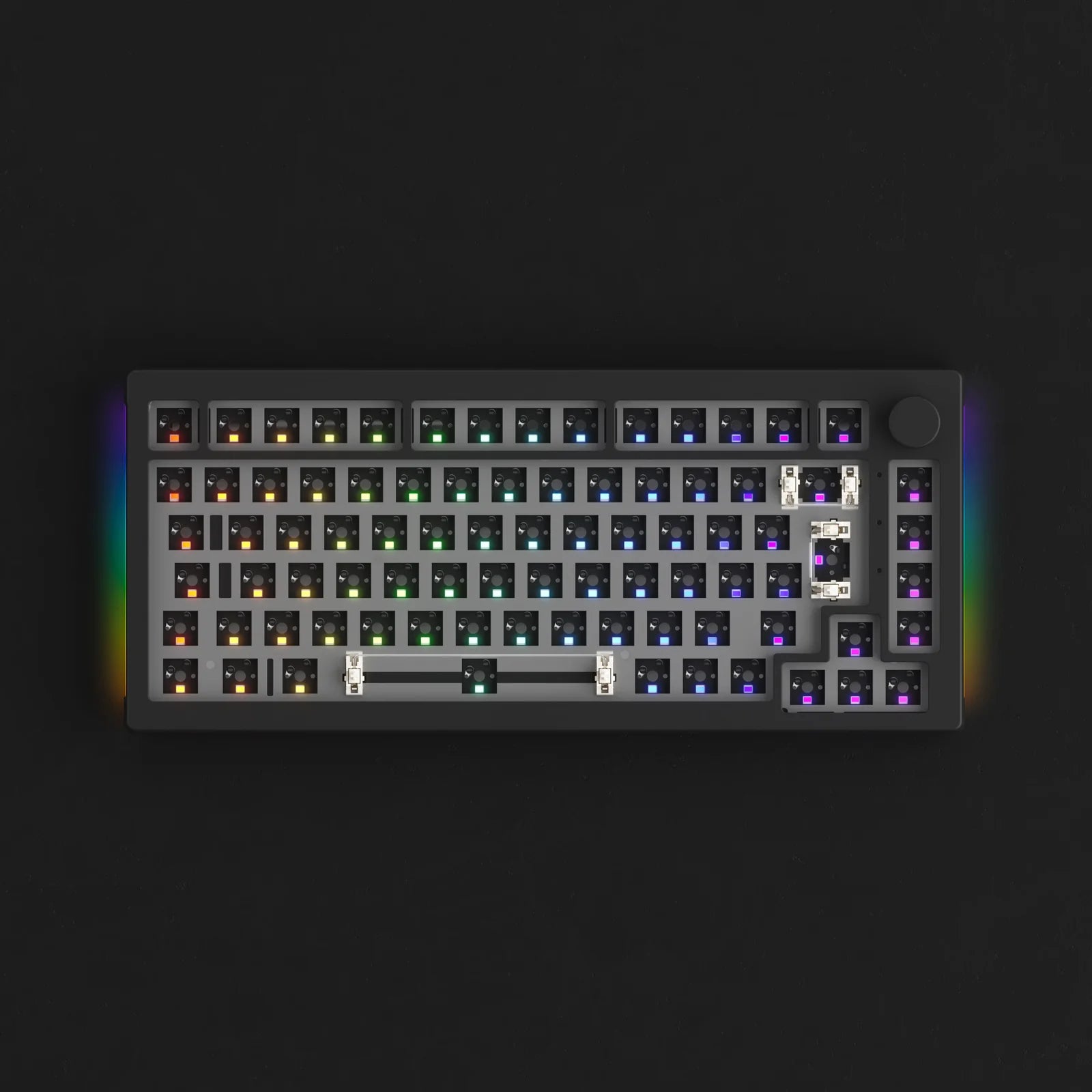

Akko 5075B Wireless Barebone Mechanical Keyboard Kit

Akko 5075 VIA DIY Kit

The Akko 5075 VIA DIY Kit is a barebone mechanical keyboard designed for enthusiasts who want a fully customizable build. Please note that this kit requires basic assembly and does not include switches or keycaps (sold separately).

VIA Support
This kit is compatible with VIA, allowing you to remap keys, configure layers, and customize RGB lighting across Linux, macOS, and Windows. QMK support is currently under certification, with source code available for advanced users.

Mounting Design – Gasket Mount
Built with a gasket mount structure, the 5075 offers a cushioned, flexible typing feel. The gasket sits between the plate and PCB, creating a softer, more comfortable experience with added flex compared to traditional tray or top mounts.

Stabilizers
The kit comes with Akko’s proprietary double-shot plate mount stabilizers featuring POM housing and a POM+TPU stem. This design minimizes rattle and ping, delivering a smoother out-of-the-box experience. The PCB also supports screw-in stabilizers for users who prefer further customization.

Connectivity Options (5075B Model Only)
For those opting for the 5075B model, you’ll enjoy a 4500mAh built-in battery paired with multi-mode connectivity. Switch seamlessly between:

• 2.4GHz wireless with low-latency performance ideal for gaming

• Bluetooth 5.0 supporting up to three paired devices with easy Fn+E/R/T switching

• USB-C wired mode for uninterrupted stability and minimal input lag

With its thoughtful design and flexible features, the Akko 5075 VIA DIY Kit is a strong choice whether you’re building your first custom keyboard or expanding your collection.

Specifications:
Akko 5075B Barebone Kit
Gasket Mount (Plate Mount Stabs)
Layout: 75% (82 Keys)
VIA Compatible
Tri-Mode Connection (Bluetooth, 2.4G Wireless & Type-C Wired)
Case Material: ABS
Plate Material: PC
Battery: 4500mAh
Per-Key RGB, South Facing Hotswappable PCB
Barebone Weight: 900g
Dimension: 335mm x 146mm x 42mm

What's Included:
- Akko 5075B Barebone Kit
- PCB
- PC Plate
- Plate Mount Stabiliser
- Switch / Keycap Puller
- USB A to USB C Cable
