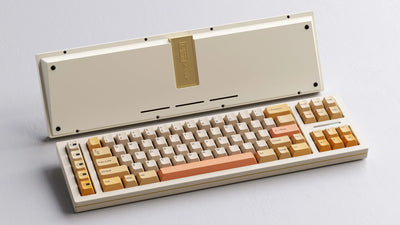

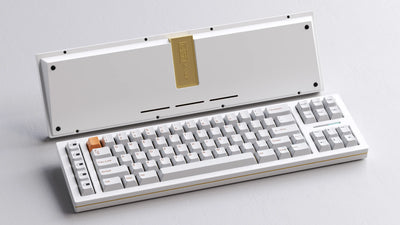

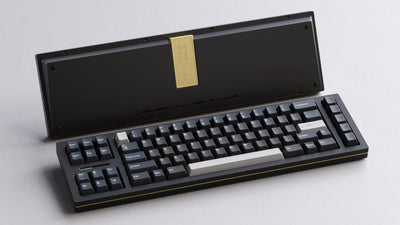

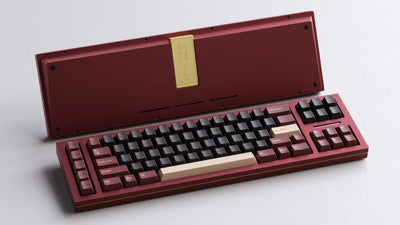

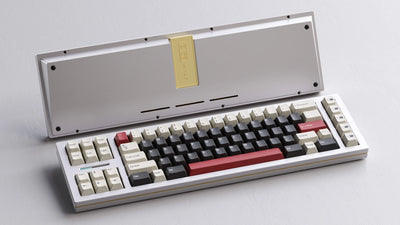

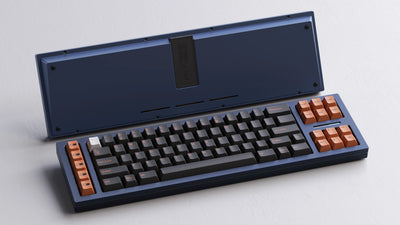

Introducing the DR-70F, a 70% custom keyboard that takes your typing experience to a whole new level! Embrace versatility with its unique split design featuring two layouts, seamlessly switching between the arrow and function areas for a personalized touch.

The board features Bluetooth PCB 5.2, boasting a 6400mAh battery for long-lasting power. Easily connect to up to 8 devices with a simple key switch, ensuring a high-speed and hassle-free experience. Plus, adjustable caps lock LED indicators cater to your individual preferences, adding a personalized touch to your setup.

The split PCB and plate design not only ensures consistent typing but also incorporates embedded silicone parts for streamlined top case positioning. 70F support both ANSI and ISO layouts.

Specifications:
Size: 401.9 x 116 x 32.4mm
Typing Angle: 7°
Material: 6063 Aluminium
Layout: 70% + 5% (Arrow and Function keys can be rotated and switches, supporting 2 layouts)

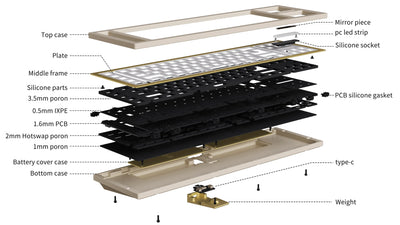

Structure: PCB Gasket Mount, Sandwich Mount
Gasket Mount Plate: 1.5mm, PC, Three Split Parts
Sandwich Mount Plate: 1.5mm, Aluminium, Anodized Gold
PCB: 1.6mm, Bluetooth PCB with 6400mAh Battery
Polling Rate: 1000hz in Wired Mode, 800hz in Bluetooth Mode
Bluetooth PCB Latency Rate: 1.25ms
Programming Support: Wired in VIAL, Bluetooth PCB in LDN

PCB Layout:
Hot swap

Soldered

Box Contents:
1x Top Case

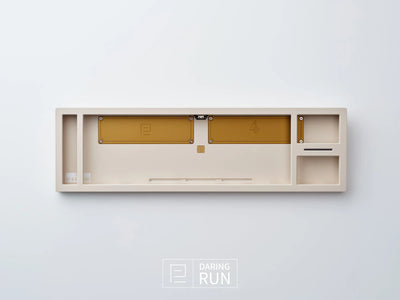

1x Bottom Case
1x Middle Frame

• Anodized Blue Case / Black Frame

• Anodized Orange Case / Silver Frame
• All other colours Case / Gold Frame

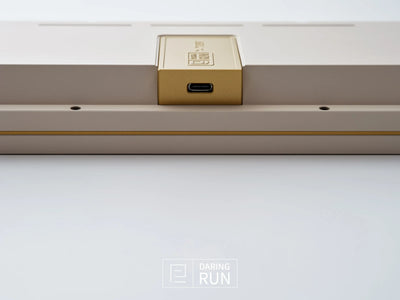

1x Weight

• Anodized Blue Case / Black PVD Weight

• Anodized Orange Case / Silver PVD Weight

• All other colours Case / Brass Weight

1x PC LED Strip (Half Light Bar)
1x Mirror Piece
1x PCB (Bluetooth PCB with battery installed in battery slot)
2x Type-C Daughterboard
1x PC Plate for Gasket Mount
1x Foam Kit
1x Accessories Bag
1x User Guide
